Door Overview
| Nominal Size | 34" x 80" |
|---|---|
| Exact Door Size | 33-3/4" x 79-1/4" |
| Thickness | 1-3/4" |
| Approx. Weight | 132 lb |
| Lock Location | 41-7/8" from top (centerline) |
| Hinge Location | 4-7/8", 35-1/8", 65-3/8" from top |
| Fire Rating | 90 Minutes |
| Door Material | 20-Gauge Galvanized Steel |
| Core | Honeycomb |
| Finish | Galvannealed (Corrosion Resistant) |
| SKU | 3480SDOKINLH |
Steel Door Specifications

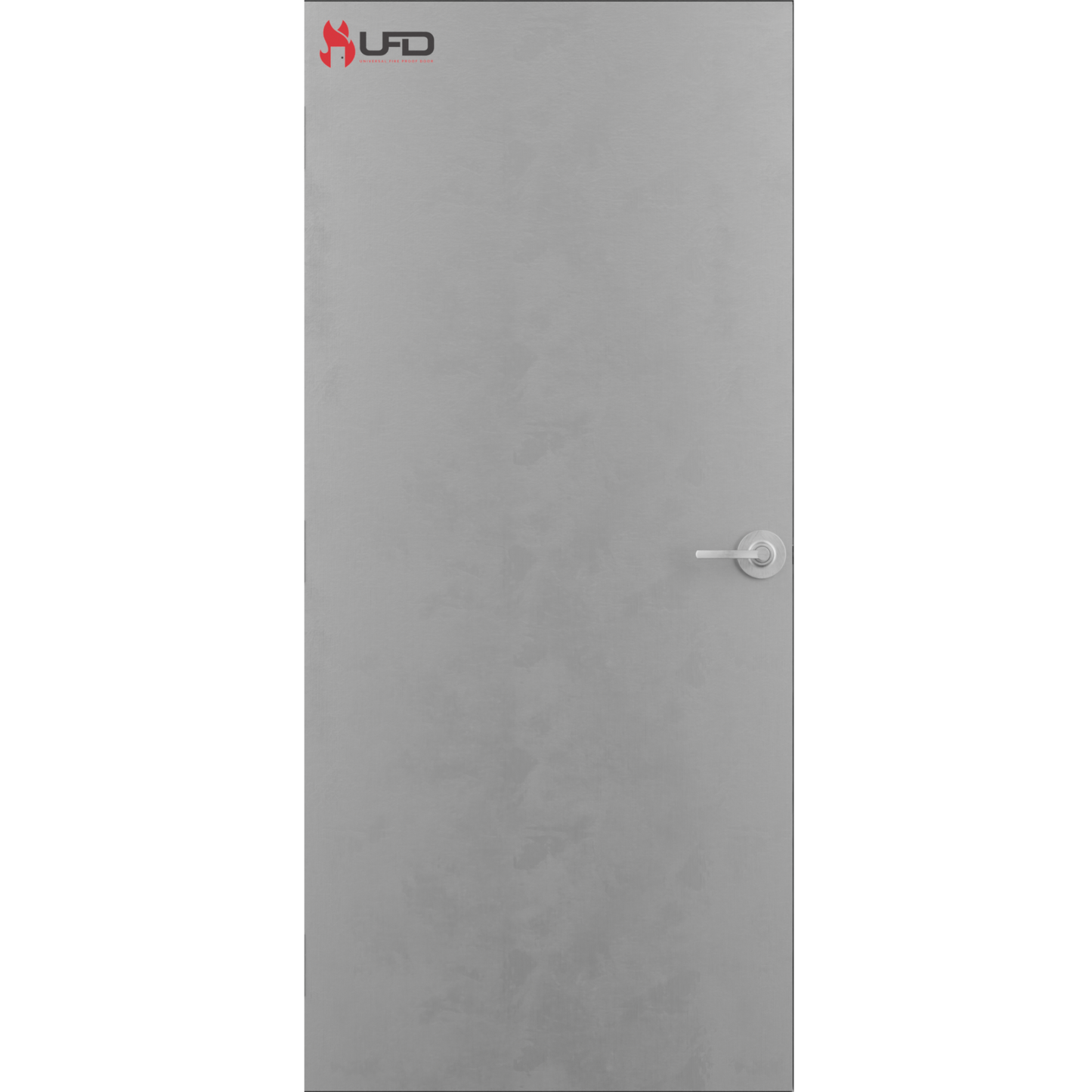

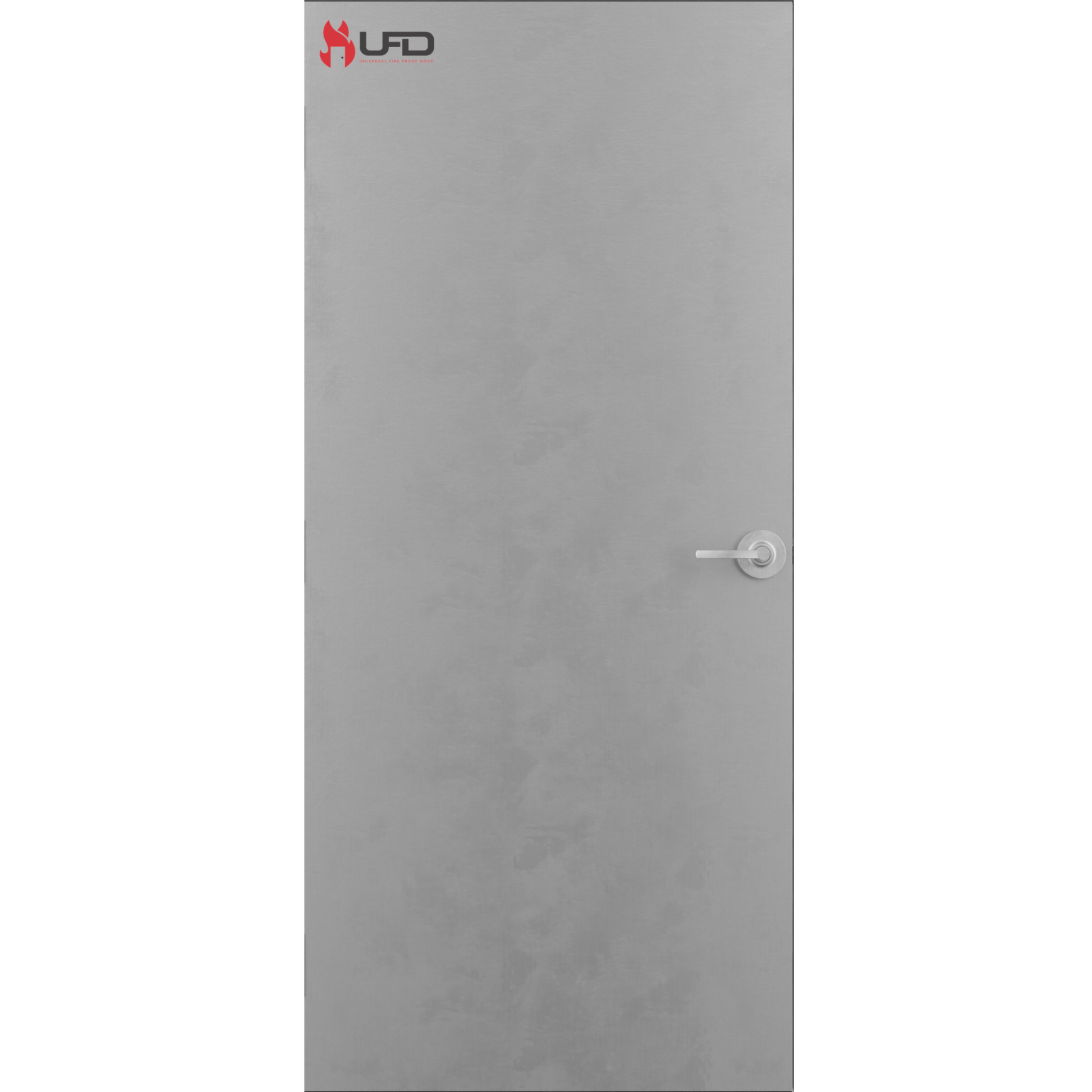

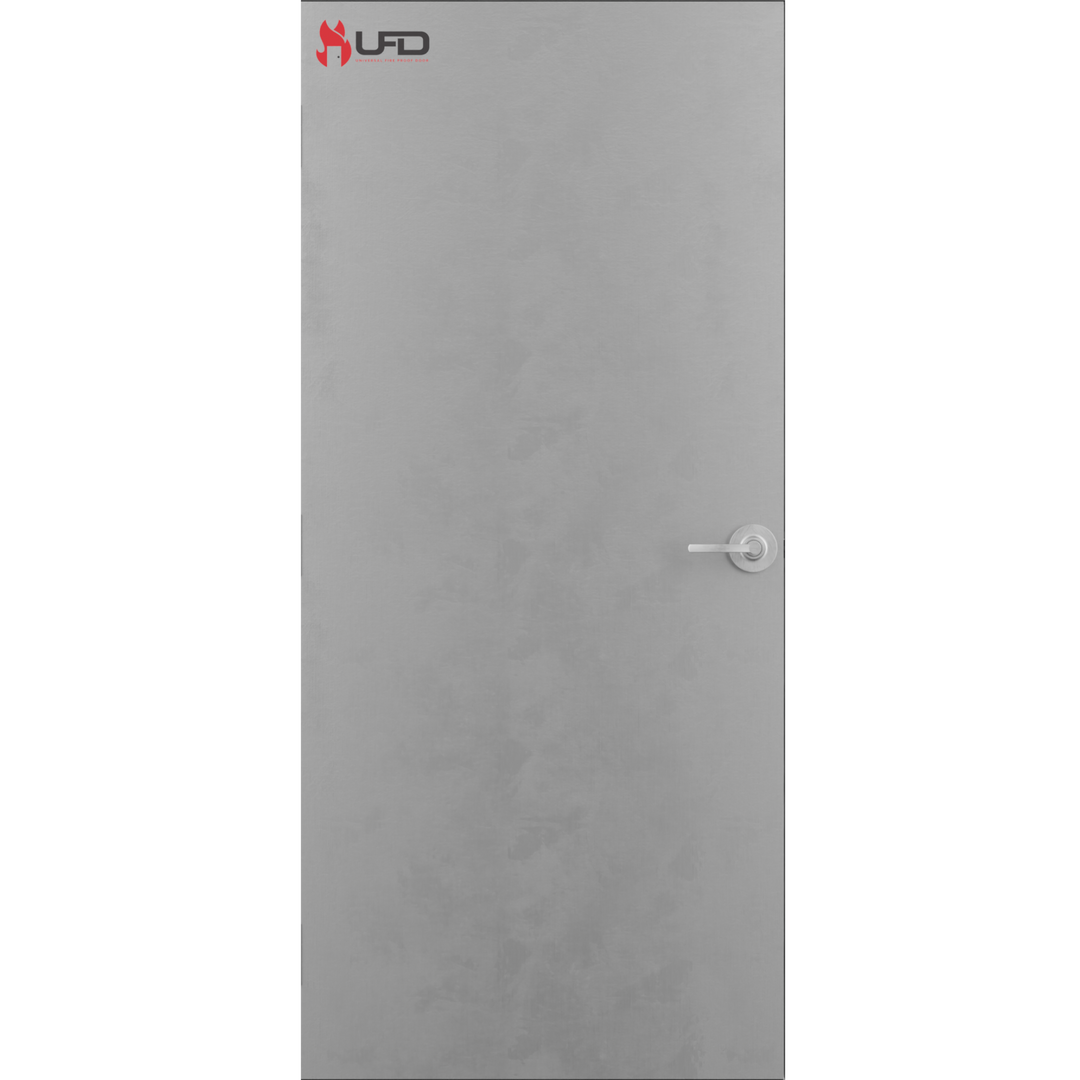

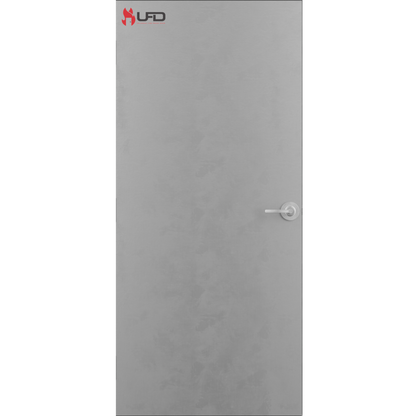

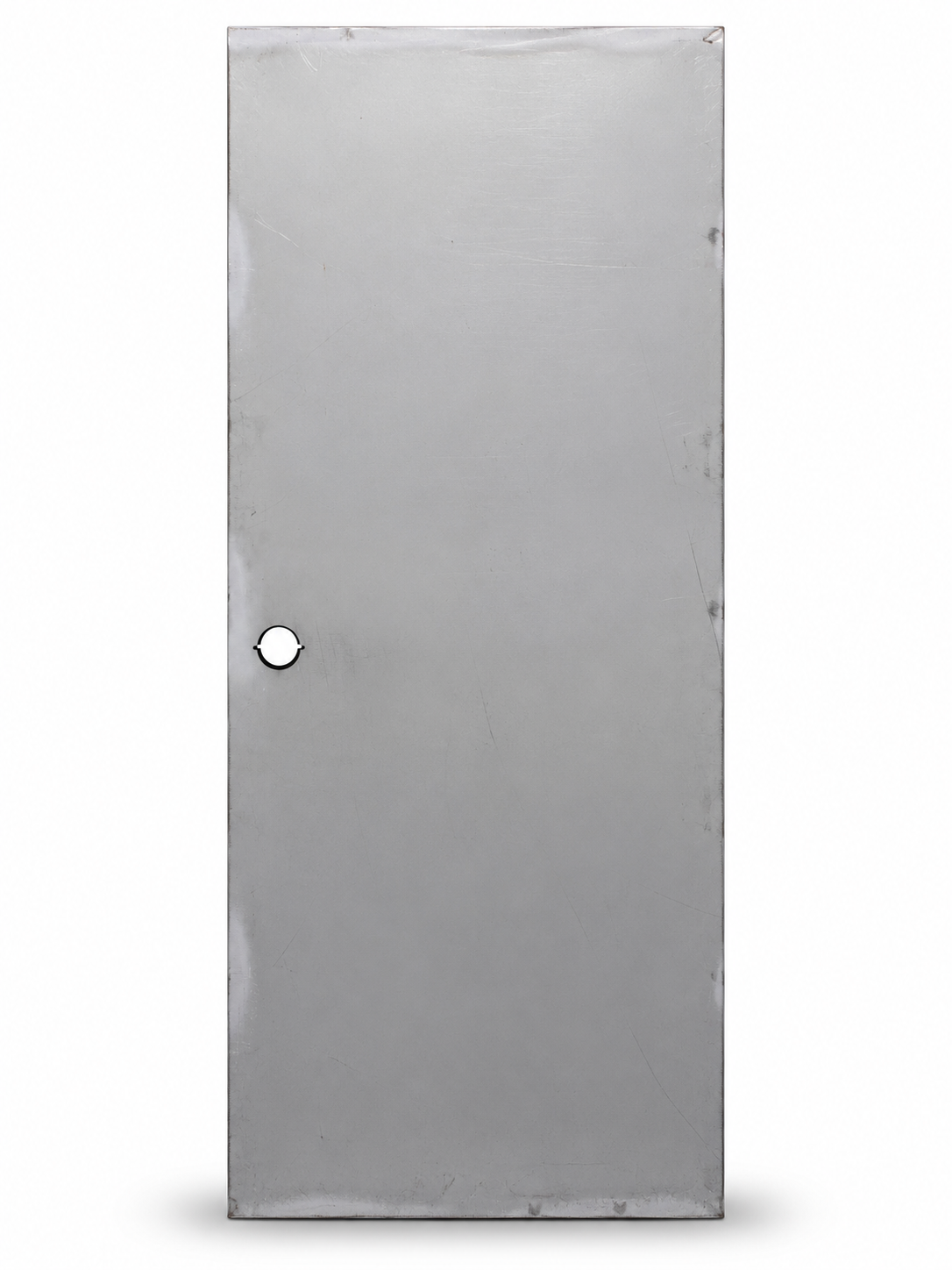

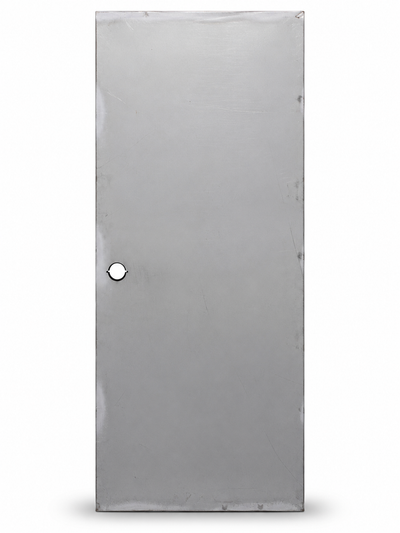

34 x 80 hollow metal door slab — 20-gauge galvannealed steel, 1-3/4" thick, with a cylindrical (knob or lever) lock prep and a 90-minute fire rating. Common in wide corridor and commercial entry openings. In stock at our Brooklyn and Brentwood warehouses.
Specifications
| Nominal size | 34" x 80" |
| Actual slab size | 33-3/4" x 79-1/4" |
| Thickness | 1-3/4" |
| Steel | 20-gauge galvannealed (corrosion resistant) |
| Core | Insulated honeycomb |
| Fire rating | 90 minutes |
| Lock prep | Cylindrical — 2-1/8" bore, 2-3/4" backset (ANSI 161) |
| Hinge prep | Universal 4-1/2", 7-gauge reinforcement |
| Edges | Inverted top and bottom channels |
| Approx. weight | 132 lb |
| Compliance | ANSI compliant, made in USA |
Technical documents
Factory prep specifications for this door — free to download.
PDFCylindrical Lock Prep — Data SheetUFD-DS-161 · ANSI/BHMA A156.115
PDFHinge Locations — Stock Door Sizes4-1/2" hinges · measured from inside top of frame
Need a drawing for a non-stock size or a different prep? Call 718-841-0767.
Which handing do I need?

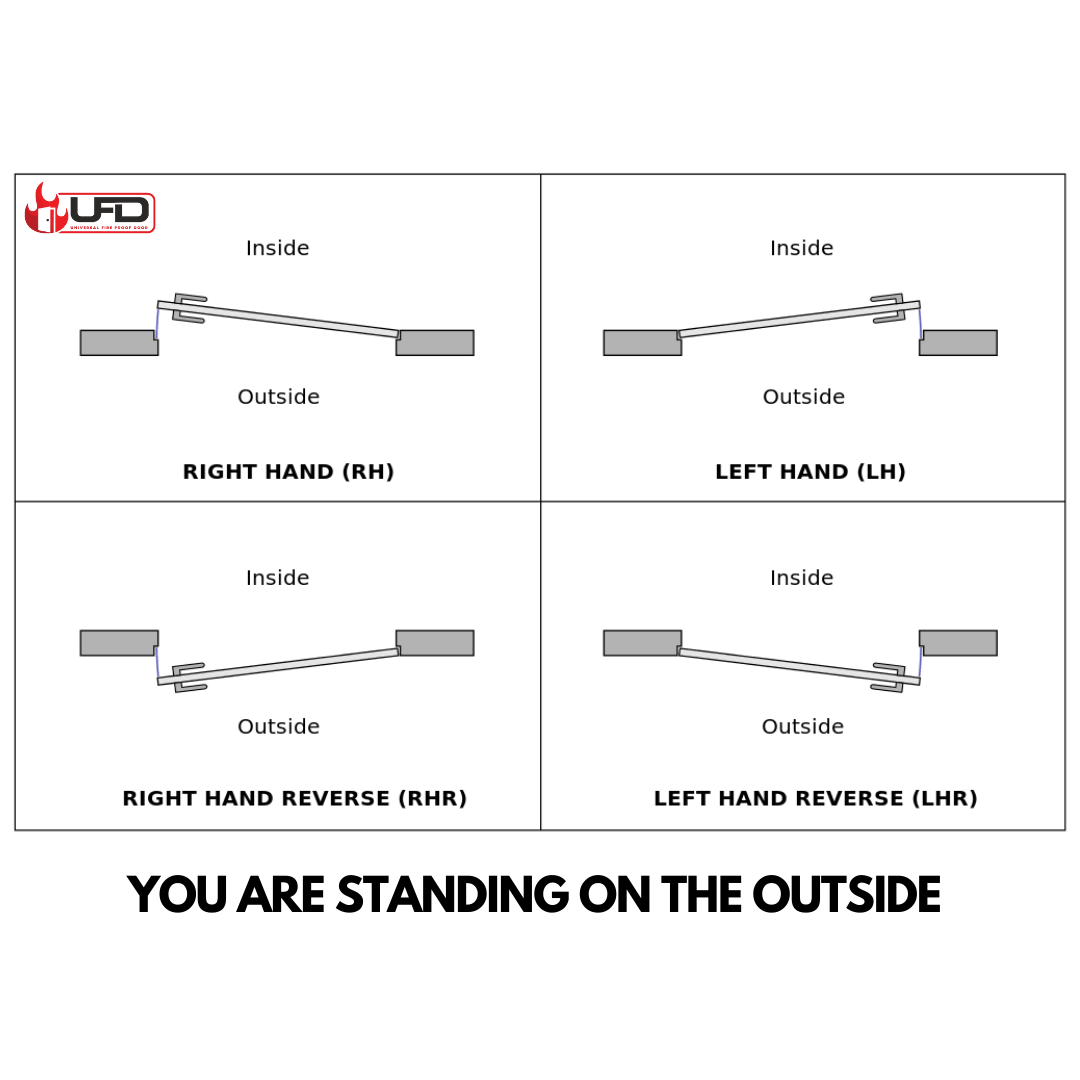

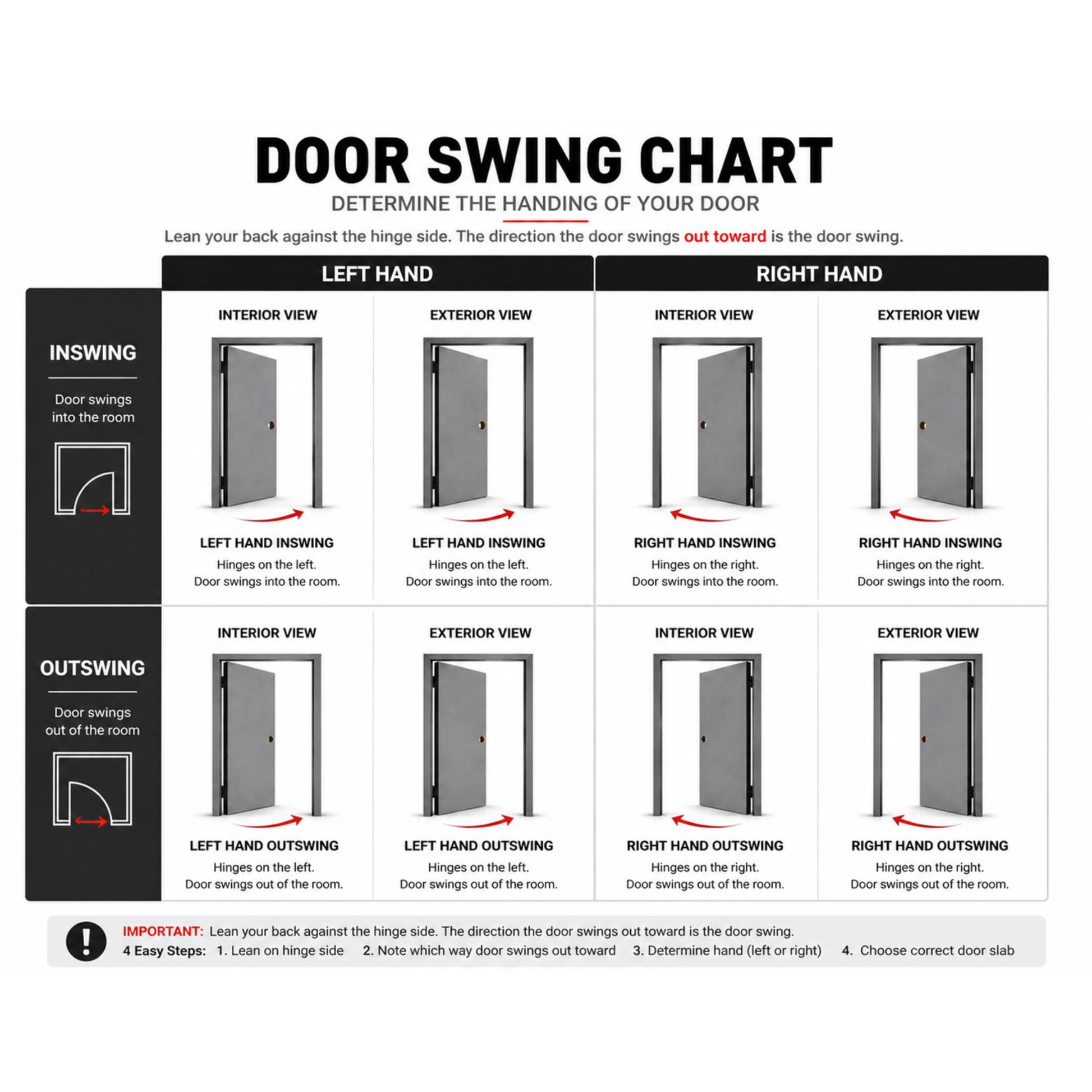

Stand on the outside of the door — the side you push from. Hinges on the left is Left Hand; hinges on the right is Right Hand. See the swing chart in the product photos if you are not sure.
What's included

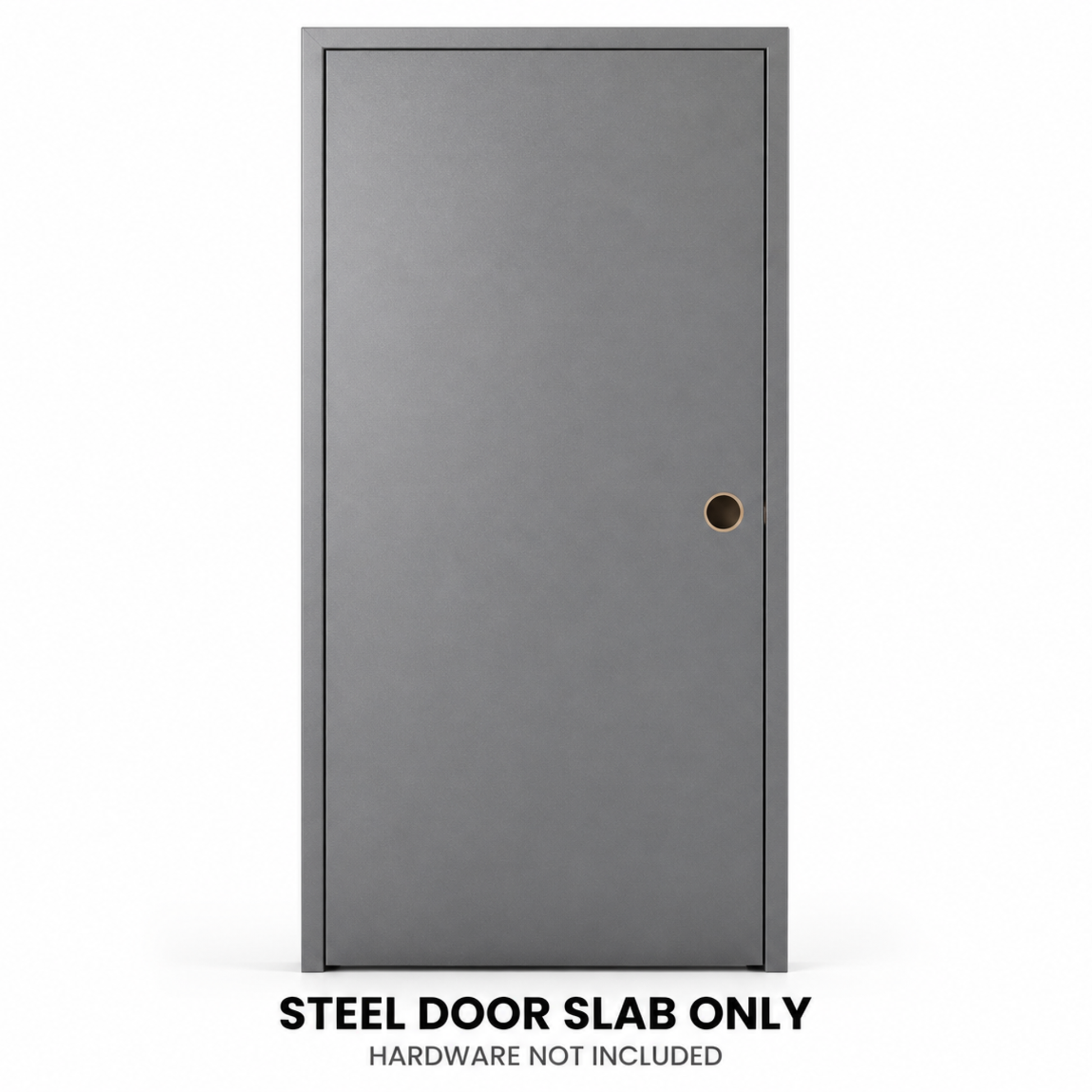

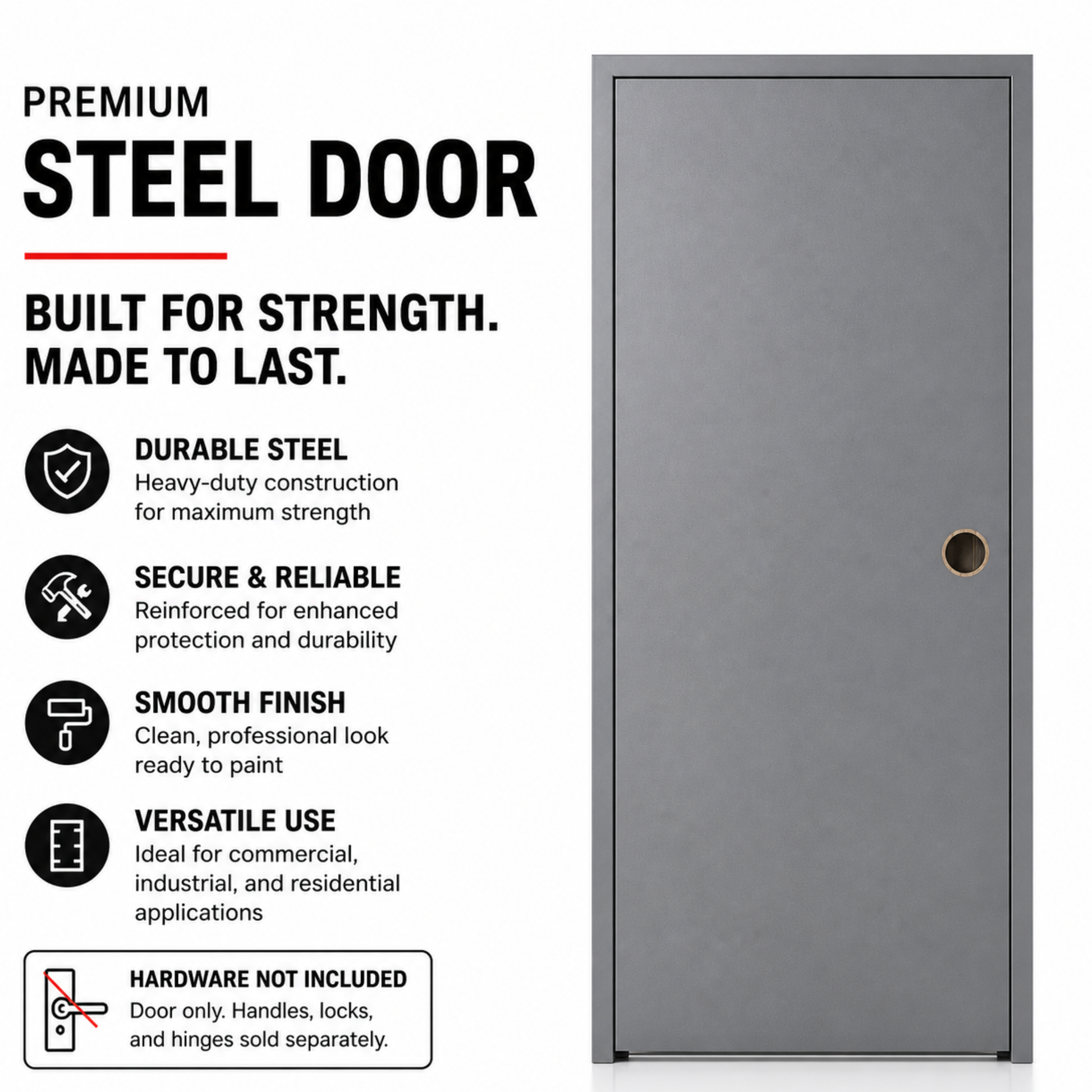

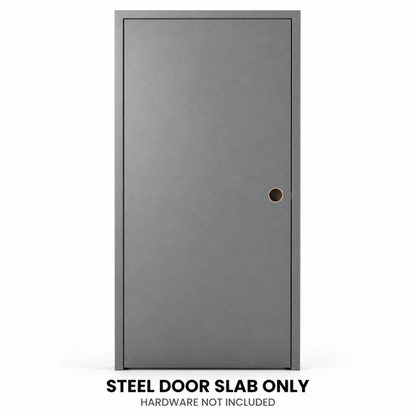

One 34 x 80 steel door slab, cylindrical prepped. Frame, hinges and lock hardware are sold separately.
Pickup, delivery and installation
Pick up at our Brooklyn or Brentwood warehouse, local delivery throughout NYC, or LTL freight nationwide. We also install — contact us for a combined door, hardware and installation quote, or for contractor and bulk pricing.
Listings & Approvals
Certifications & Standards
| Fire Rating | 90 Minutes (UL 10C) — tested and certified for 90-minute fire protection |
|---|---|
| FDNY Certificate | Approved for installation in all NYC boroughs |
| NYC DOB Approval | Meets all Department of Buildings requirements |
| IBC / NFPA | Conforms to International Building Code standards |
| ANSI | Meets ANSI A250.8 standards for commercial steel doors |
Required Tools
- Level (minimum 48")
- Hammer drill with masonry bits
- Screwdriver set or impact driver
- Shims (wood or steel)
- Safety equipment (gloves, glasses)
Installation Steps
- Verify opening dimensions and ensure rough opening is plumb and square.
- Position frame in opening and secure with temporary bracing.
- Level frame using shims at anchor points.
- Install anchors per specifications (typically 12" from corners, 24" on center).
- Verify door operation before removing temporary bracing.
- Install fire-rated seals and threshold.
- Apply required labels and conduct final inspection.
Important: All fire-rated doors must be installed by licensed professionals in accordance with NYC building codes. Improper installation voids fire rating and warranty.
What's the lead time for custom sizes?
3-5 Business days, Next day expedition available
Does this come primed or painted?
For an additional fee
Is installation included?
No
