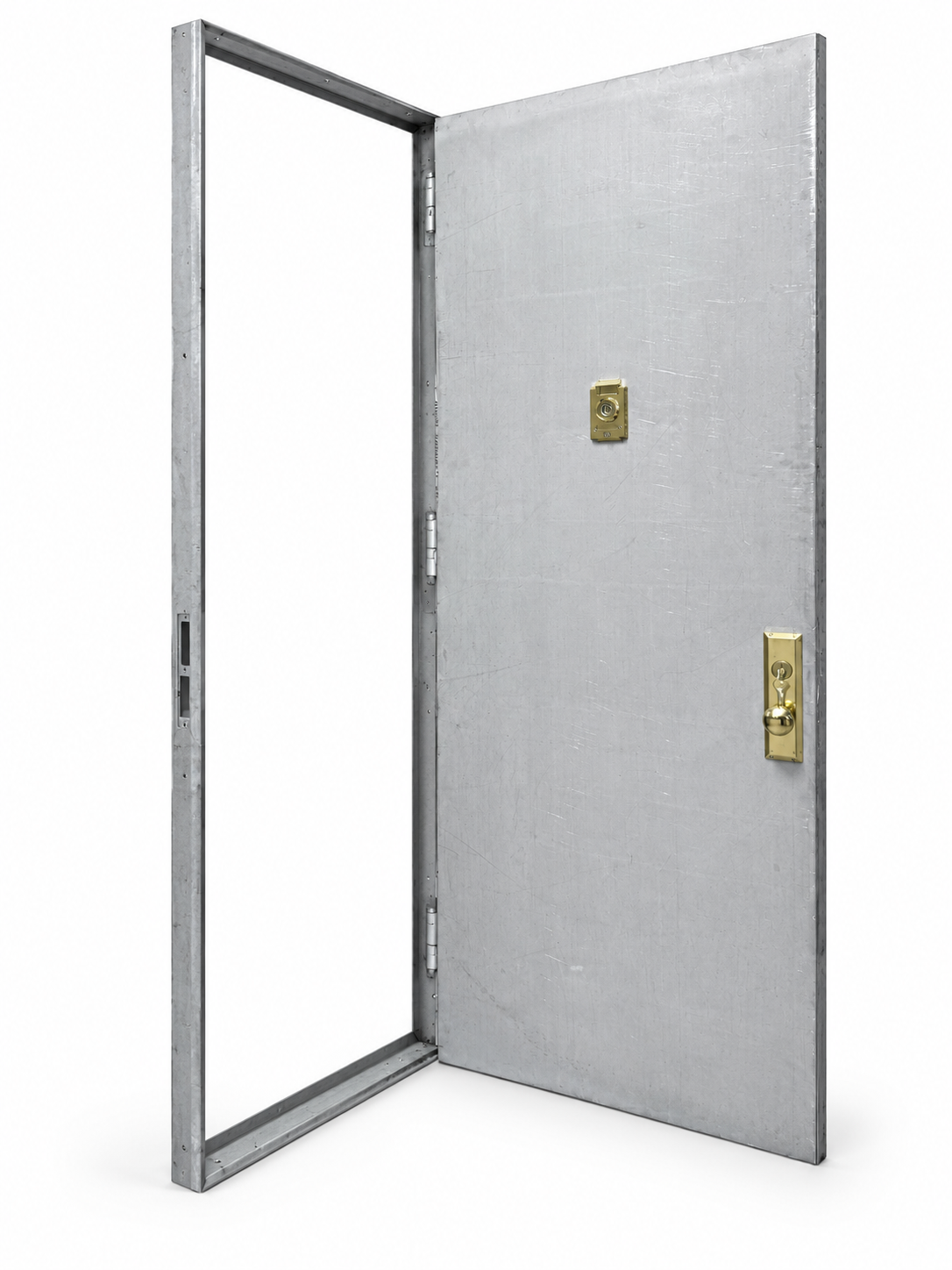

Apartment Angle Unit — Steel Mortise Door, 12 Ga Angle Frame, Hinges, Lock, Peep & Chime

Door Overview

Thickness1-3/4"
Mortise Pocket7-5/8"
Fire Rating90 Minutes
Door Material20-Gauge Galvanized Steel
CoreHoneycomb
FinishGalvannealed (Corrosion Resistant)
SKUAU-3080-LH

Steel Door Specifications

  • Complete unit: door, frame, hinges, lock, peep & chime
  • 12-gauge welded steel angle frame
  • Slips into existing frame - no frame removal
  • (3) 4-1/2 in. adjustable spring hinges, satin chrome
  • Mortise apartment lock with deadbolt, solid brass
  • 20-gauge galvannealed steel door, 90-min rated slab
  • Fabricated in Brooklyn, NY
● Fabricated in our Brooklyn factory

Apartment Angle Unit

Complete. Pre-hung. Ready to slide in.

A complete apartment entry replacement: our 20-gauge mortise-prepped steel door, hung on a welded 12-gauge angle frame with three spring hinges, a mortise apartment lock with deadbolt, a peephole and a door chime. The unit slips into your existing frame — no demolition, no patching, no frame removal.

MADE IN NEW YORK  •  12-GAUGE FRAME  •  HARDWARE INCLUDED  •  NO FRAME REMOVAL

What's in the box
01 · DOORSteel Mortise Door20-ga galvannealed, 1-3/4" thick, 90-min fire-rated slab with 7-5/8" mortise pocket.
02 · FRAME12-Gauge Angle FrameBent, mitered and welded in-house. Sized 1/8" under your existing frame to slide into the rabbet.
03 · HINGES(3) Spring Hinges4-1/2" x 4-1/2" adjustable self-closing spring hinges, satin chrome.
04 · LOCKMortise Lock + DeadboltApartment entry mortise lockset, solid brass, 2-1/2" backset, SC1 keyway.
05 · PEEPPeephole ViewerDoor viewer installed at standard eye height.
06 · CHIMEDoor ChimeApartment door chime mounted on the door.
Specifications
Available sizes 30", 32", 34", 36" wide x 80" or 84" high · 32" and 36" x 96"
Handing Left Hand or Right Hand
Door 20-gauge galvannealed steel, 1-3/4" thick, insulated honeycomb core
Door fire rating 90 minutes (slab)
Lock prep Mortise — 7-5/8" pocket, reinforced 161 prep
Frame 12-gauge steel angle, mitered and welded, 1/8" undersized to fit inside existing frame
Hinges (3) 4-1/2" x 4-1/2" adjustable spring hinges, satin chrome (US26D)
Lockset Mortise apartment entry lock with deadbolt, solid brass, 2-1/2" backset, SC1 keyway
Also included Peephole viewer and door chime
Made in Brooklyn, New York
How it works
STEP 01Measure the frameMeasure width and height of the existing opening at the rabbet. Pick your size and handing.
STEP 02We fabricateWe weld the angle frame and hang the door with hinges, lock, peep and chime — in-house in Brooklyn.
STEP 03Slide in & installThe unit slips into the old frame and fastens in place. The old frame stays in the wall.
Which handing do I need?

Stand on the outside of the door — the side you push from. Hinges on the left is Left Hand; hinges on the right is Right Hand. See the swing chart in the product photos if you are not sure.

Pickup, delivery and installation

Pick up at our Brooklyn or Long Island warehouse, or get local delivery throughout NYC. We also install — contact us for installation, full-building replacements, or contractor pricing.

NEED A CUSTOM SIZE? Send us the width & height. We'll handle the rest. Call (718) 455-8442 or visit our Angle Units page for a custom quote.

Listings & Approvals

UL ListedFDNY ApprovedNYC DOBIBC Compliant

Certifications & Standards

Fire Rating90 Minutes (UL 10C) — tested and certified for 90-minute fire protection
FDNY CertificateApproved for installation in all NYC boroughs
NYC DOB ApprovalMeets all Department of Buildings requirements
IBC / NFPAConforms to International Building Code standards
ANSIMeets ANSI A250.8 standards for commercial steel doors

Required Tools

  • Level (minimum 48")
  • Hammer drill with masonry bits
  • Screwdriver set or impact driver
  • Shims (wood or steel)
  • Safety equipment (gloves, glasses)

Installation Steps

  1. Verify opening dimensions and ensure rough opening is plumb and square.
  2. Position frame in opening and secure with temporary bracing.
  3. Level frame using shims at anchor points.
  4. Install anchors per specifications (typically 12" from corners, 24" on center).
  5. Verify door operation before removing temporary bracing.
  6. Install fire-rated seals and threshold.
  7. Apply required labels and conduct final inspection.
Important: All fire-rated doors must be installed by licensed professionals in accordance with NYC building codes. Improper installation voids fire rating and warranty.
What's the lead time for custom sizes?

3-5 Business days, Next day expedition available

Does this come primed or painted?

For an additional fee

Is installation included?

No
