Slab only  Door only — frame, hinges and lock hardware are sold separately.

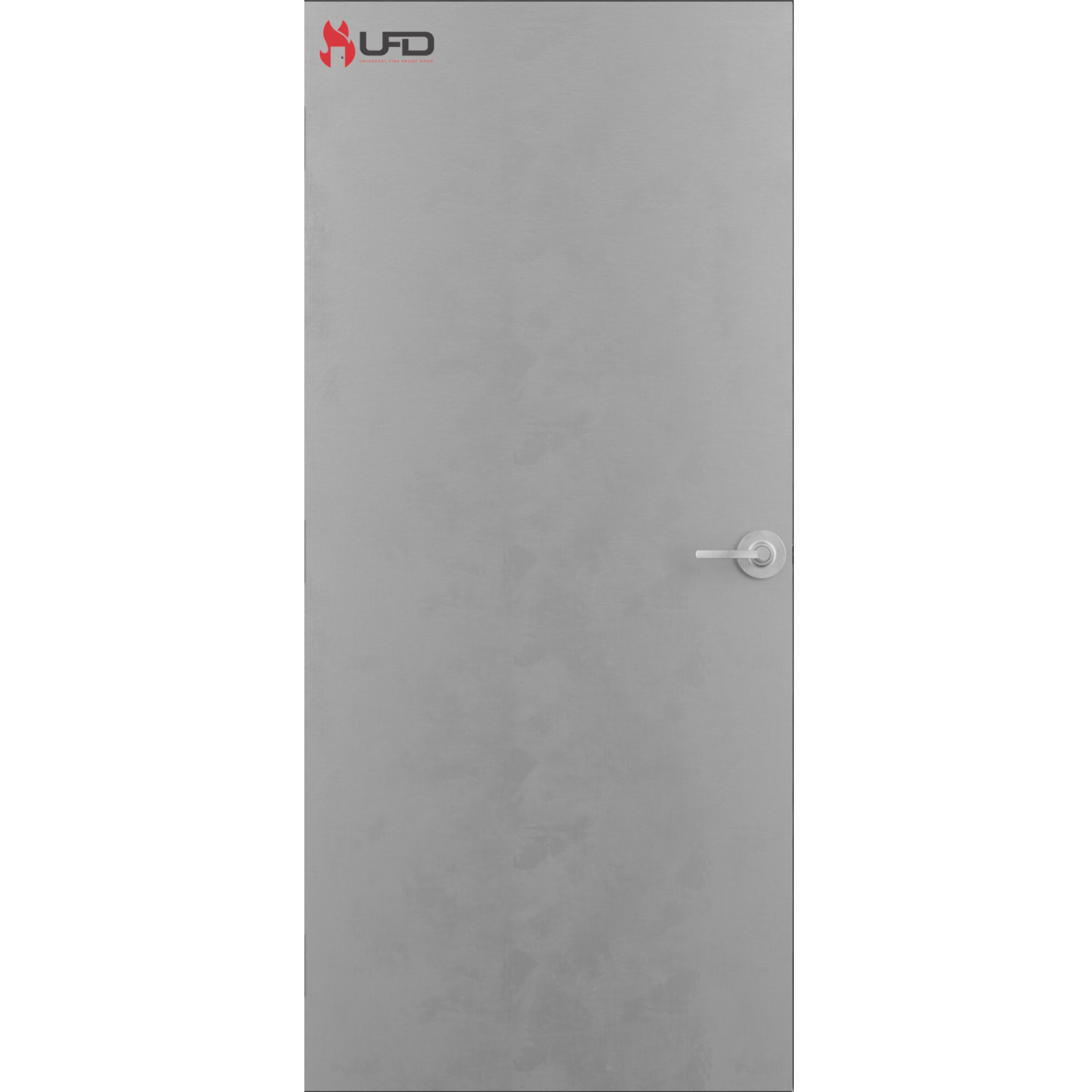

Cylindrical Prep Steel Door Slabs90-Minute Fire Rated

Hollow metal steel door slabs with a cylindrical lock prep — 2-1/8" bore, 2-3/4" backset — for standard knob and lever locksets. 20-gauge galvannealed steel, 1-3/4" thick, insulated honeycomb core — in stock at our Brooklyn and Brentwood, NY warehouses.

Shop sizes (718) 455-8442
  • 90-minute fire rated
  • Stocked in Brooklyn & Brentwood
  • Pickup, delivery or freight
  • Serving NYC since 1924

23 products

What you get

Sold as a slab only

Each listing is the steel door leaf only, prepped for a cylindrical knob or lever lockset so your hardware installs cleanly. The frame, hinges and lockset are not included — order them separately or call us for a complete door package.

Included

  • Steel door slab (door leaf only)
  • Cylindrical lock prep — 2-1/8" bore, 2-3/4" backset
  • 20-gauge galvannealed steel, 1-3/4" thick
  • Insulated honeycomb core
  • 90-minute fire rating
  • Your choice of left or right hand

Not included — sold separately

  • Door frame (welded or knock-down)
  • Hinges
  • Cylindrical knob or lever lockset
  • Door closer, panic bar and other hardware
  • Installation (available — call for a quote)

Specifications

Slab specifications

ProductSteel door slab — door only
Lock prepCylindrical (ANSI 161), 2-1/8" bore, 2-3/4" backset
Material20-gauge galvannealed steel
Thickness1-3/4"
CoreInsulated honeycomb
Fire rating90 minutes
Nominal widths24" to 44"
Nominal heights72" to 96"
Actual slab size1/4" narrower and 3/4" shorter than nominal
HandingLeft hand or right hand
Price$398.48, any size
AvailabilityIn stock — Brooklyn & Brentwood, NY
DeliveryWarehouse pickup, NYC delivery, LTL freight nationwide

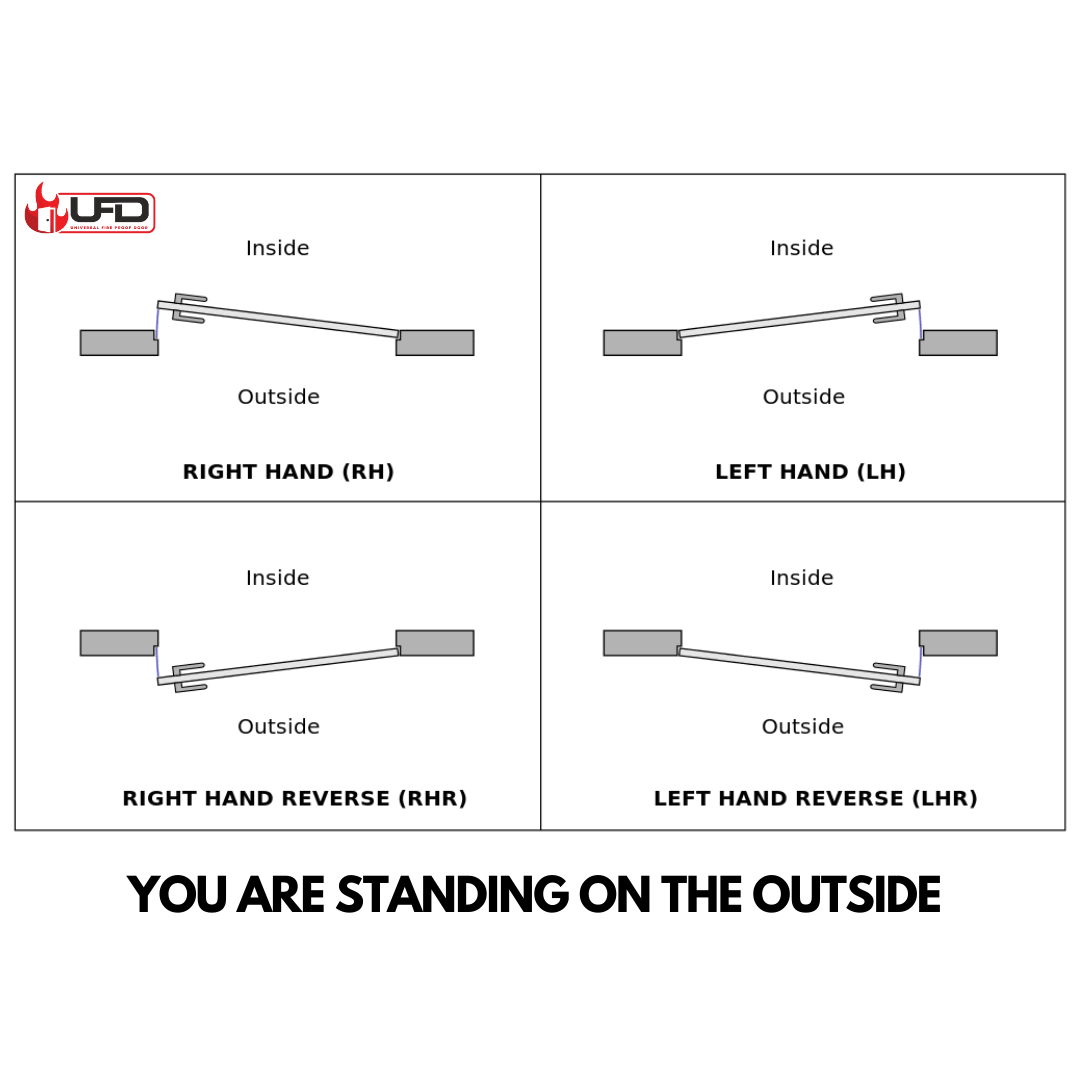

Handing

Left hand or right hand?

Hinges on left = Left Hand
Hinges on right = Right Hand

Stand outside the door, on the side you push from. If the hinges are on your left, order Left Hand. If they're on your right, order Right Hand. Not sure? Call us and we'll help you confirm before you order.

FAQ

Cylindrical door slab FAQ

Does a cylindrical door slab include the frame or hardware?

No. These are sold as door slabs only — the steel door leaf itself. The frame, hinges, lockset and any closer or exit device are sold separately. See our steel door frames and door hardware, or choose a complete KIN steel door unit.

What is a cylindrical prep door slab?

A cylindrical prep slab has the standard ANSI 161 lock prep — a 2-1/8" bore through the door face with a 2-3/4" backset — to accept a cylindrical knob or lever lockset. If you're installing a mortise lockset with a box-style lock body, choose a mortise prep slab instead.

What size steel door slab should I order?

Order by the nominal opening size, for example 36" x 84". The slab itself measures 1/4" narrower and 3/4" shorter to leave clearance inside the frame. We offer 24" to 44" widths and 72" to 96" heights, including extra-wide 42" and 44" leaves for equipment rooms and service corridors.

Are these steel door slabs fire rated?

Yes. Every slab on this page is 90-minute fire rated. For a fire-rated opening, the frame, hinges and lockset must also be rated for the assembly.

How do I pick up or get my door slab delivered?

All sizes are in stock at our Brooklyn and Brentwood, NY warehouses. Pick up at the warehouse, choose NYC delivery, or ship LTL freight nationwide.

Can you make a custom size door slab?

Yes. We fabricate to spec in our New York factory. Contact us for a quote or contractor pricing.
