Hardware only Hinges only — door, frame and lockset sold separately.
Commercial Door HingesBall Bearing & Spring Hinges
Heavy-duty 4-1/2" ball bearing butt hinges and self-closing spring hinges for commercial steel and wood doors — including NYCHA-compliant 6" spring hinges with non-removable caps.
- Ball bearing & spring
- NYCHA spring hinges
- UL listed options
- Serving NYC since 1924
What you get
What comes in the box
Each order ships the hinges in the pack size listed — single hinge, 2 pair or 3-pack. The door, frame and lockset are not included — order them separately or call us for a complete door package.
Included with each order
- Hinges in the listed pack size
- Screw pack with spring hinges (machine + wood screws)
- Non-removable caps on TH6 spring hinges
Not included — sold separately
- Steel door and frame
- Lockset or exit device
- Door closer
- Installation (available — call for a quote)
Specifications
Hinge specifications

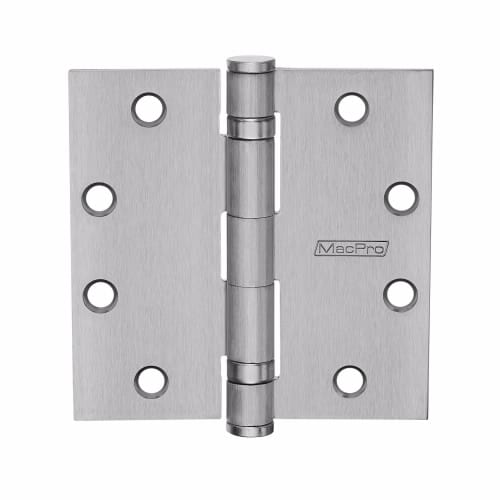

| MacPro MPB79 | 4-1/2" x 4-1/2", 5-knuckle ball bearing, full mortise — $24.99 |
|---|---|

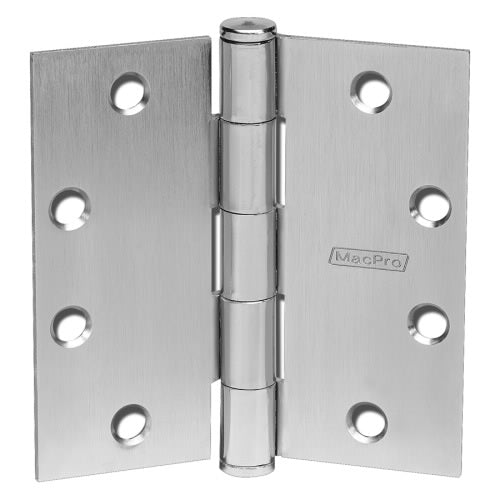

| MacPro MP79 | 4-1/2" x 4-1/2" steel ball bearing butt, 250 lb, 3-hour rated — $36 |

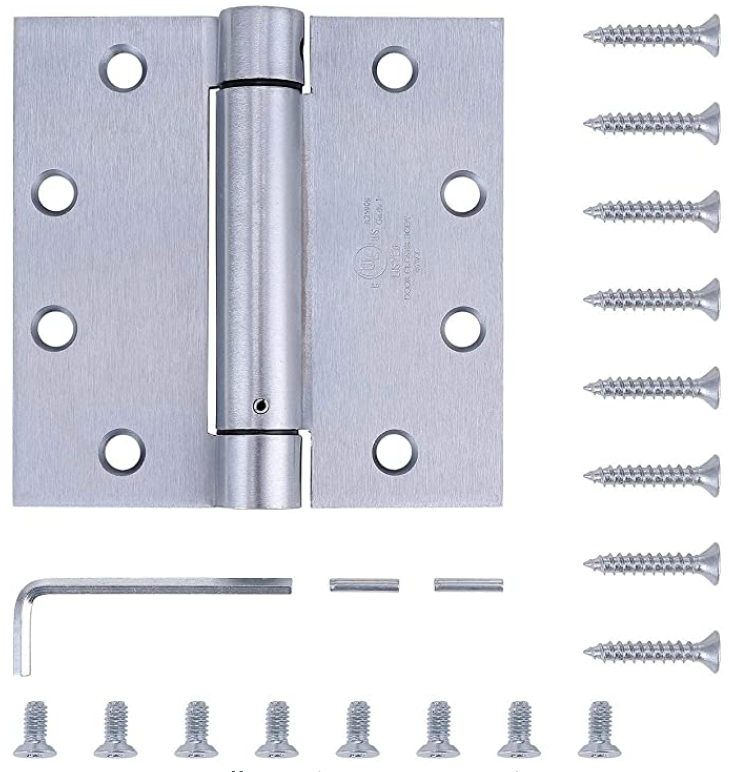

| PBB SP81 spring hinge | 4-1/2" x 4-1/2", UL listed, Grade 1, satin chrome, 3-pack — $45 |
| S. Parker 2029 TH6 | 6" single-action spring, NYCHA, prime coated — $85 |

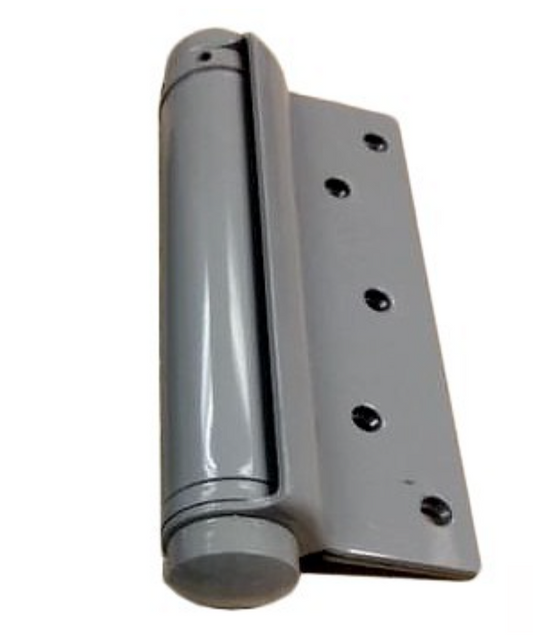

| PBB TH6 | 6" single-action spring, heavy duty — $120 |
| MPB79 finishes | US26D, US10B or BSP |
| Standard | ANSI/BHMA A156.1 / A156.7 templates |
| Door thickness | 1-3/4" (MP79) |
| Handing | Non-handed (MP79) |
Hinge types
Which hinge do I need?
- Ball bearing butt hinge
- Standard hinge for commercial steel and wood doors. Smooth, long-lasting swing.
- Spring hinge
- Built-in spring closes the door on its own — no separate closer needed.
- NYCHA spring hinge
- Tamper-resistant non-removable cap to meet NYC Housing Authority standards.
- Fire-rated openings
- Use UL listed hinges and make sure the door and frame are rated too.
Not sure which hinge fits your opening? Send us a photo and the door size and we'll help you choose.
FAQ
Commercial door hinge FAQ
What's included with each hinge order?
You get the hinges only, in the pack size listed on each product. Spring hinges ship with screws — the SP81 3-pack includes machine screws and wood screws. The door, frame and lockset are not included.
Butt hinge, ball bearing or spring hinge — which do I need?
Ball bearing butt hinges (MacPro MPB79 / MP79) are the everyday choice for commercial steel and wood doors. Spring hinges close the door on their own, so they're used where a door must self-close — like apartment entry doors — without a separate closer.
What size hinge fits a standard commercial door?
Most 1-3/4" thick commercial steel doors take 4-1/2" x 4-1/2" hinges. Our 6" TH6 spring hinges are a heavy-duty option for NYCHA-style self-closing doors. Not sure? Send us a photo of the existing hinge.
What are NYCHA spring hinges?
The S. Parker 2029 TH6 single-action spring hinge has a non-removable top cap so the spring can't be tampered with, meeting New York City Housing Authority requirements. It comes prime coated for painting.
Are these hinges fire rated?
The SP81 spring hinge is UL listed, and the MP79 is listed for 3-hour fire-rated door hardware. For a fire-rated opening, the door, frame and all hardware must be rated for the assembly — call us to confirm before ordering.
Do you offer contractor or volume pricing?
Yes. We supply hinges, doors and frames for full buildings and multi-unit projects across NYC. Contact us for a project quote.
