Specifications
| Approx. Weight | 3 lb |
|---|---|
| Hinge Size | 4-1/2" x 4-1/2" (square corners) |
| Finish | Satin Chrome (US26D / 652) |
| SKU | 45X45SHUL |
Package Includes
Key Features

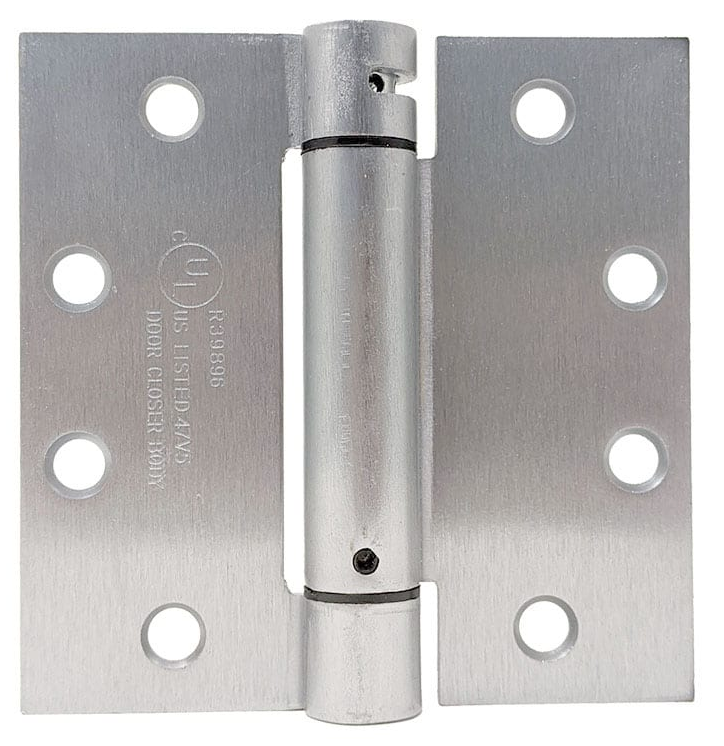

Keep fire doors and commercial openings closing reliably with this 3-pack of BEST (formerly Stanley) 2060R full-mortise adjustable spring hinges. These UL Listed, self-closing hinges measure 4-1/2" x 4-1/2" with square corners and come in a durable satin chrome finish (US26D / 652). They are built for labeled fire doors, stairwell doors, apartment unit entrances, and hotel guest room doors.
A patented internal ratchet lets you adjust closing force up or down with a single 5/32" hex wrench, and a locking safety screw prevents tampering with the setting. Where an overhead closer isn't wanted, these spring hinges are a cost-effective way to make a door self-closing.
Download the BEST 2060R Spec Sheet & Installation Instructions (PDF)
Features
- UL Listed for use on labeled fire door assemblies
- Meets NFPA 80 for doors rated up to 3 hours
- ANSI/BHMA K81071F full-mortise template hinge
- Size: 4-1/2" x 4-1/2", square corners, .134" (3.4 mm) gauge steel
- Finish: Satin chrome (US26D / 652)
- Adjustable closing force with a patented internal ratchet, no loose locking pins
- Square-wire spring with about 25% more closing power
- Locking safety screw keeps the power setting from being tampered with
- Maintenance-free bearings, no grease or oil needed
- Removable pin
- Limited lifetime warranty for the life of the building

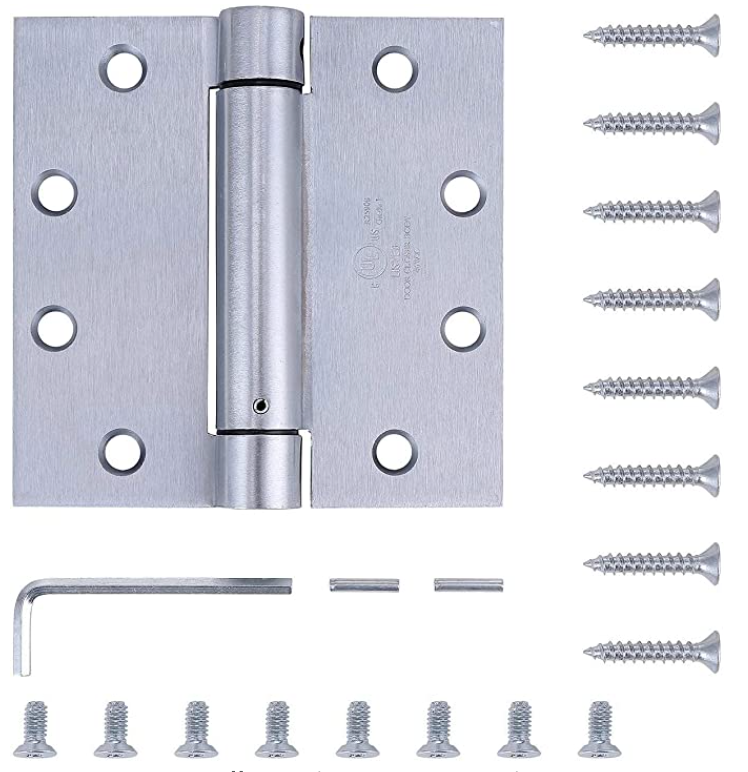

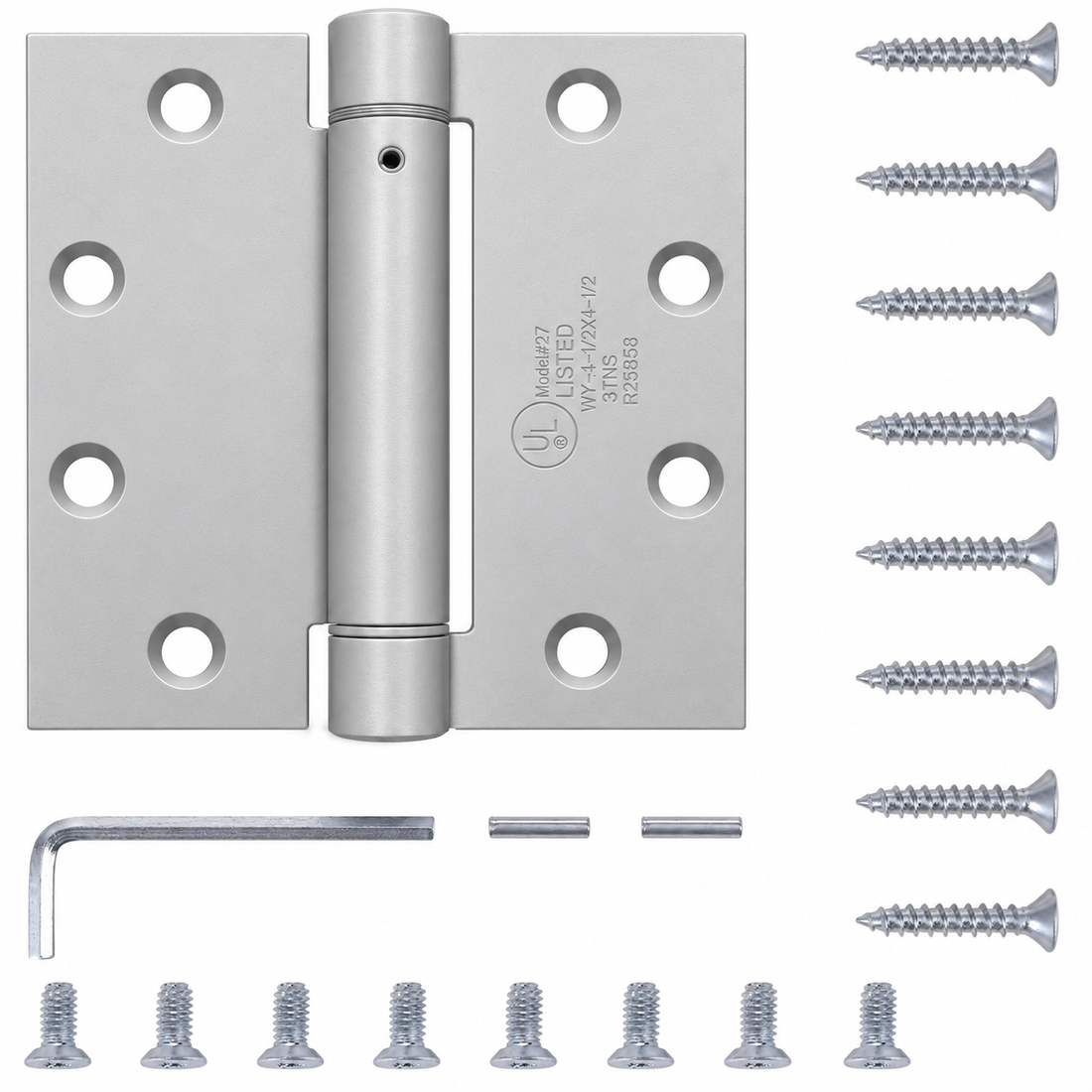

What's Included
- 3 spring hinges
- 8 machine screws (12-24 x 1/2") per hinge
- 8 wood screws (#12 x 1-1/4") per hinge
- 1 locking safety screw per hinge
How Many Do You Need?
- Doors up to 180 lb, max 3'-0" x 7'-6" x 1-3/4": 3 spring hinges (one pack)
- Doors up to 180 lb, max 4'-0" x 8'-0" x 1-3/4": 4 spring hinges
- NFPA 80 requires at least 2 spring hinges on a labeled fire door
Install per NFPA 80 and the listing of the complete door assembly. See the spec sheet for mortise dimensions, hinge spacing, and closing-force adjustment.
Sold by Universal Fireproof Door Co., a Brooklyn, NY manufacturer and supplier of commercial steel doors, frames, and door hardware. Questions about fit or your door prep? Call us at (718) 455-8442.
What's the lead time for custom sizes?
3-5 Business days, Next day expedition available
Does this come primed or painted?
For an additional fee
Is installation included?
No
