Specifications
| SKU | 7201-SC-ET |
|---|

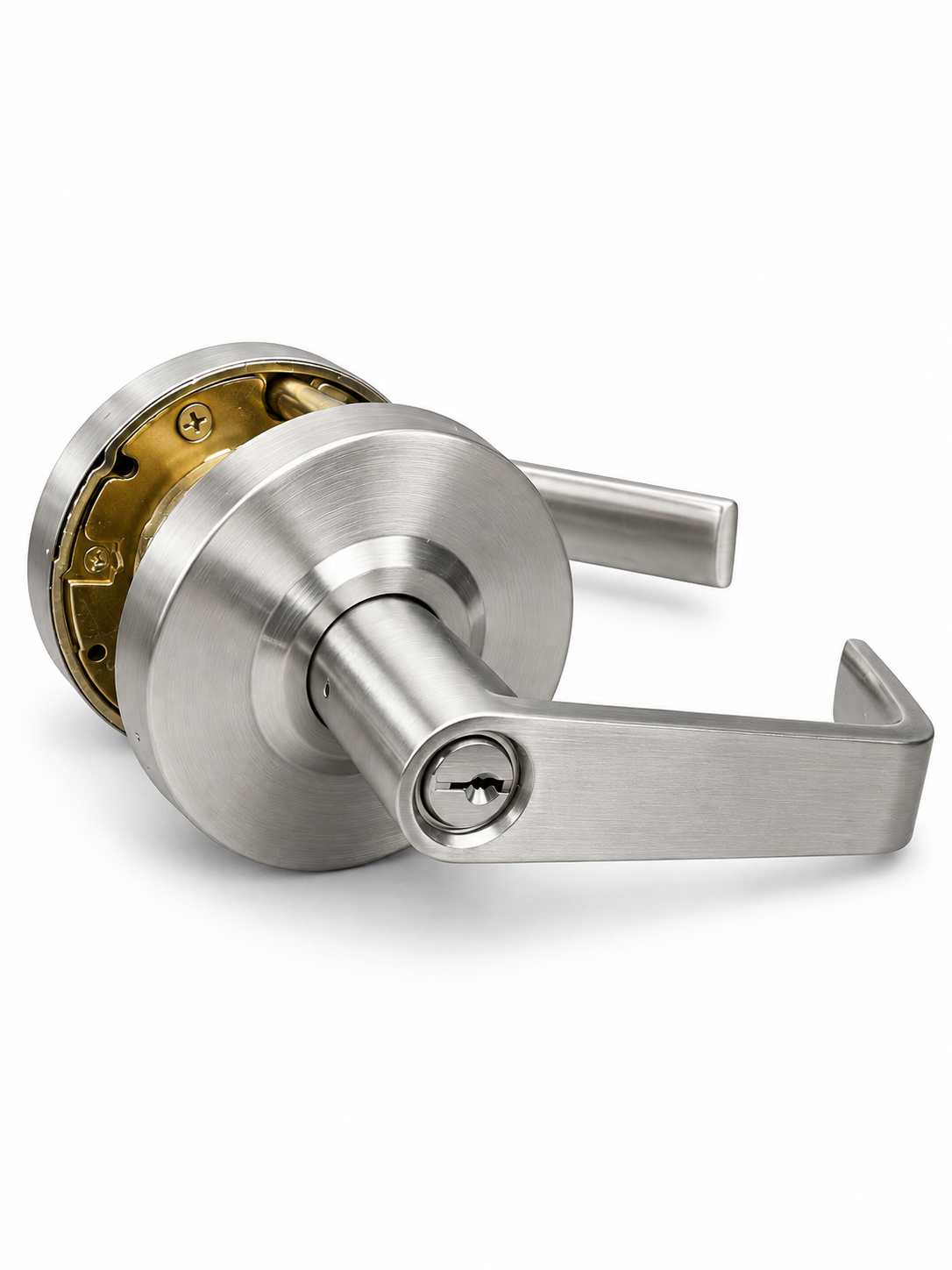

The UFD 7201 Series is a heavy-duty commercial lever lockset built for fire-rated door assemblies. Constructed from solid 304 stainless steel with a satin chrome finish, it is UL listed for 3-hour fire doors and suited to schools, hospitals, offices, multifamily buildings, and any opening where code-compliant, ADA-friendly lever hardware is required.
The oversized 85mm (3-3/8") rose covers most existing cylindrical lock preps, making the 7201 a strong choice for retrofits as well as new construction. Every unit ships with a 70mm (2-3/4") backset latch, 1-1/8" faceplate, and a 4-7/8" ASA strike plate. Thru-bolts are supplied and recommended for high-security openings. Keyed functions include two SC1 (Schlage C) keys.
Available Functions
- Keyed Entry (7201-SC-ET) – Locks from outside by key, inside by push button. Offices, storage, tenant doors.
- Privacy (7201-SC-PV) – Push-button lock inside, emergency release outside. Restrooms and bedrooms.
- Passage (7201-SC-PS) – Latch only, never locks. Corridors, closets, connecting rooms.
- Classroom (7201-SC-CL) – Outside lever locked or unlocked by key; inside always free. Classrooms and meeting rooms.
- Storeroom (7201-SC-SR) – Outside lever always locked, key retracts latch; inside always free. Storerooms and mechanical rooms.
Specifications
Download the full 7201 specification sheet (PDF, 5 pages) — door preparation dimensions, ANSI function chart, thru-bolt security levels, installation sequence and cylinder service, plus a submittal and approval block for architects and contractors.
Applications
Fire-rated steel doors, hollow metal doors, and wood fire doors in commercial, institutional, and residential common-area openings. Compatible with standard 161 door preps. Need a knob instead of a lever for residential replacement work? See the 7204 Series fire-rated knob lockset.
Sold and stocked by Universal Fireproof Doors in Brentwood, New York. Contractor and volume pricing available – contact us for project quotes.
What's the lead time for custom sizes?
3-5 Business days, Next day expedition available
Does this come primed or painted?
For an additional fee
Is installation included?
No
