Hardware only Exit device only — door, frame, hinges and outside trim beyond the pull plate sold separately.
Commercial Panic Bars & Exit DevicesGrade 1 Heavy Duty
ANSI Grade 1 aluminum push-bar exit devices for single and double commercial doors — rim devices for single doors and surface vertical rod devices for pairs. Fits metal or wood doors, surface mounted, with an exterior pull plate.
- ANSI Grade 1
- Rim & vertical rod
- Metal or wood doors
- Serving NYC since 1924
What you get
What comes in the box
Each exit device ships with the push bar, latch, strike and exterior pull plate for one door. The door, frame and hinges are not included — order them separately or call us for a complete door package.
Included with each device

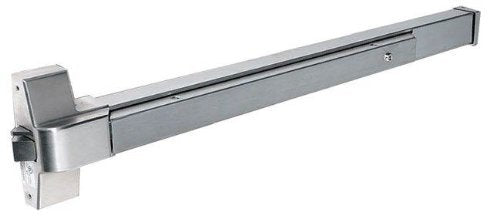

- Aluminum push-bar exit device
- Latch and adjustable strike
- Standard exterior pull plate
- Cylinder with keys (8300 Series)
Not included — sold separately
- Steel door and frame
- Hinges
- Door closer
- Outside lever or specialty trim
- Installation (available — call for a quote)
Specifications
Exit device specifications

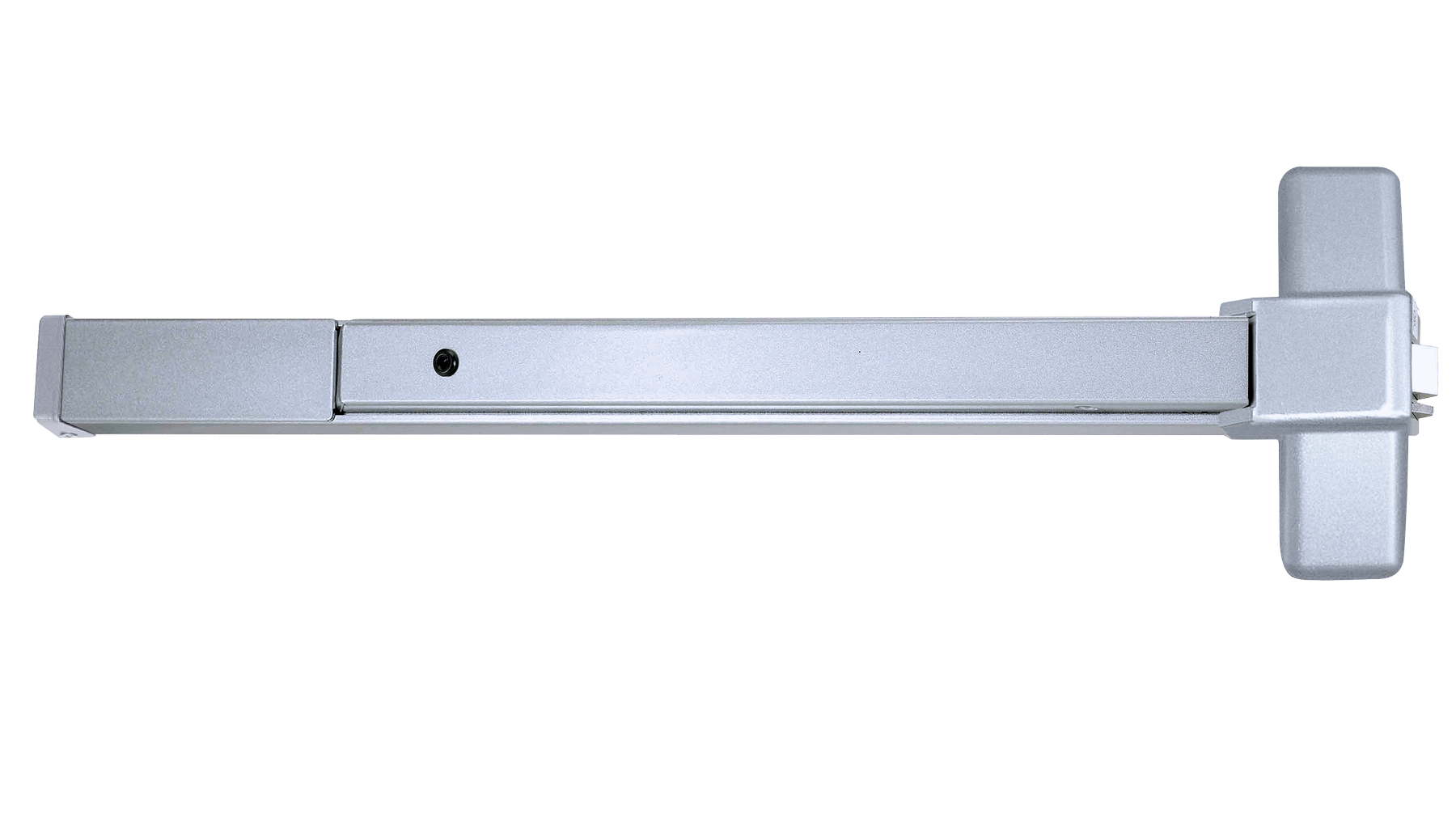

| 8300 Series rim device | Grade 1, UL listed, fire rated up to 3 hours — $300 |
|---|---|

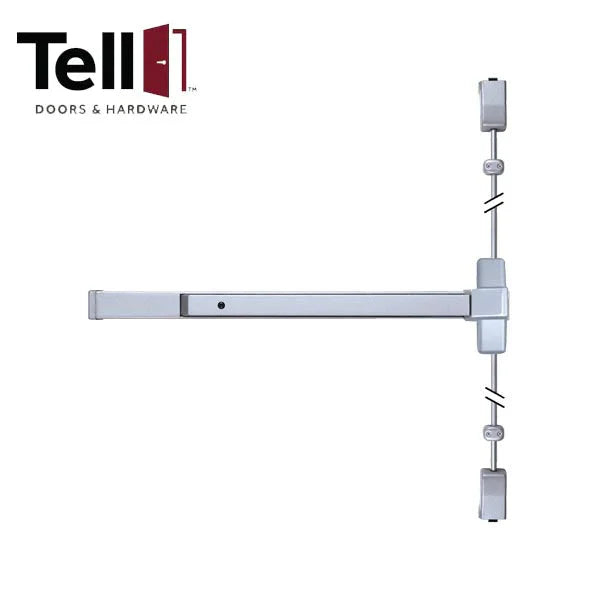

| 8400B vertical rod device | Grade 1, surface mounted, 36" doors — $600 |
| Finish | Aluminum |
| Standard | ANSI A156.3 Grade 1 |
| Door width | 28" to 36" (8300) |
| Door thickness | 1-3/8" to 2" |
| Latch | Stainless steel, 5/8" throw, deadlatch (8300) |
| Cylinder | 6-pin solid brass, Schlage C keyway, keyed different |
| Mounting | Surface mounted, metal or wood doors |
Device types
Rim or vertical rod?
- Rim exit device
- Latches into a strike on the frame. Standard for single doors.

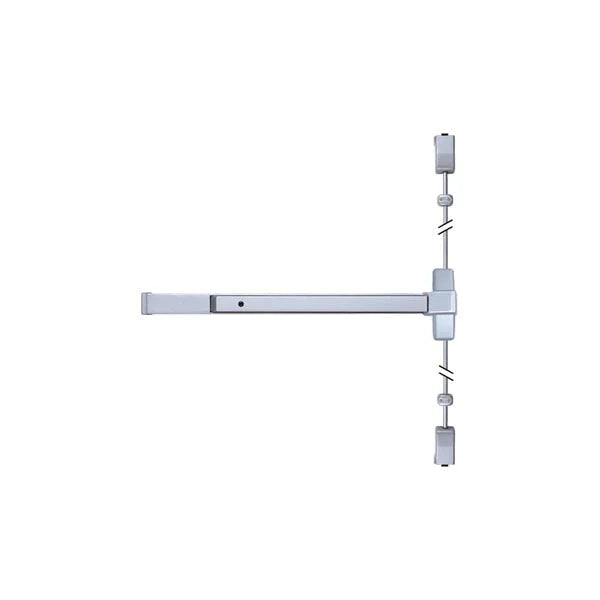

- Surface vertical rod
- Rods latch at the top and bottom of the door. Typical for pairs of doors without a center mullion.
- Fire-rated openings
- Use a UL listed device and make sure the door and frame are rated too.
Not sure which device fits your opening? Send us a photo and the door size and we'll help you choose.
FAQ
Panic bar & exit device FAQ
Which exit device do I need — rim or vertical rod?
A rim exit device latches into a strike on the frame and is the standard choice for single doors. A surface vertical rod device latches at the top and bottom of the door, which is typical for pairs of doors that close without a center mullion. Not sure? Contact us with a photo of the opening.
Are these panic bars fire rated?
The 8300 Series rim device is UL listed and fire rated up to three hours. For fire-rated openings, the door, frame and all hardware must be rated for the assembly — call us to confirm the right device for your fire door.
What size door do they fit?
The 8300 rim device fits 28" to 36" wide doors from 1-3/8" to 2" thick. The 8400B vertical rod device is sized for 36" doors. Both are surface mounted and work on metal or wood doors.
Does a panic bar include the door or frame?
No. These are sold as exit devices only. The door, frame and hinges are sold separately. See our steel door slabs and steel door frames, or choose a complete KIN steel door unit.
Do exit devices come with a cylinder and keys?
The 8300 Series ships with a 6-pin solid brass cylinder in a Schlage C keyway, keyed different. Additional outside trim can be added — ask us for options.
Can you install panic hardware?
Yes. Our crews install exit devices and complete door openings across NYC. Contact us for an installation quote or contractor pricing.
Related
Shop related products
Need panic hardware installed?
We supply and install fire-rated doors, frames and exit devices across NYC. Contractor and volume pricing available.
