Cylinder Deadbolt 3501 Grade 2 Stainless Steel Single – Satin Chrome or Satin Brass

Specifications

SKU3501-SC

The UFD 3501 Series is a commercial single cylinder deadbolt made from 304 stainless steel for corrosion resistance and long service life. With an ANSI Grade 2 adjustable latch, it adds a second point of locking above any lever or knob set on apartment entries, office doors, back doors, and storage rooms.

PDF
Product Specification Sheet
2 pages — full specifications, door preparation detail, six-step installation sequence and backset adjustment.
Download PDF

The latch adjusts between 60mm and 70mm (2-3/8" to 2-3/4") backset, so one deadbolt fits the two most common door preps in North America. Fits doors 35mm to 45mm (1-3/8" to 1-3/4") thick, which covers standard interior and exterior residential and commercial doors.

Available Finishes

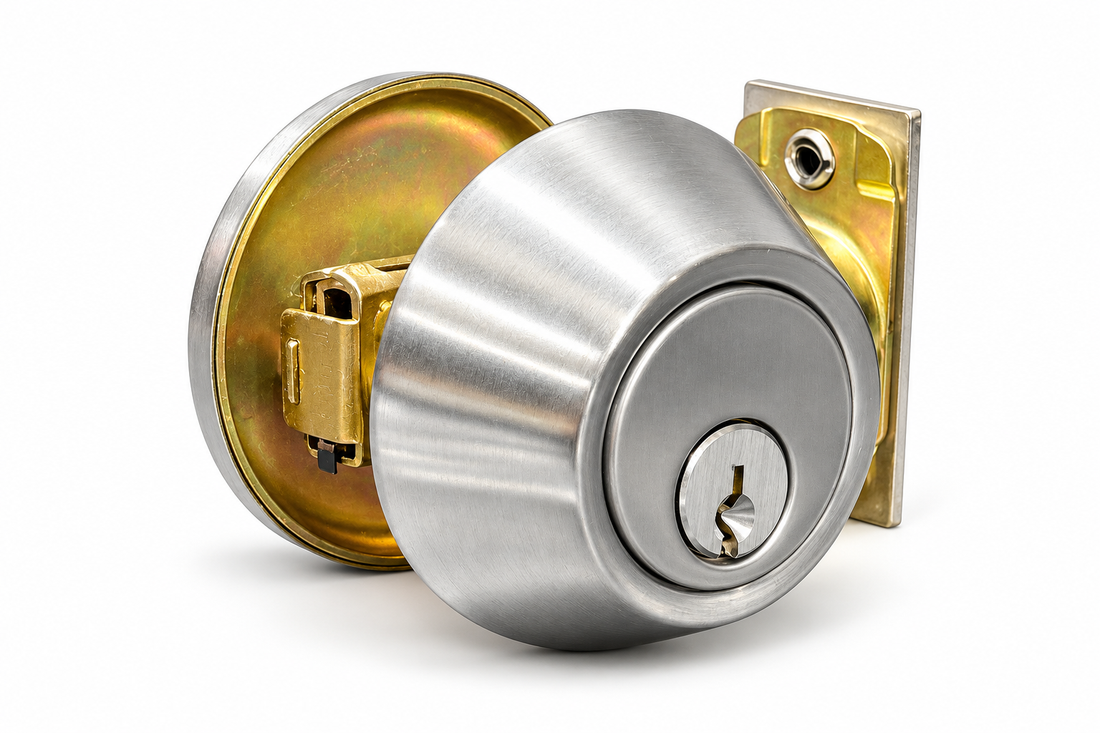

  • Satin Chrome (3501-SC) – Matches the 7201 satin chrome lever lockset and 7204 satin nickel knob lockset.
  • Satin Brass (3501-SB) – Warm brass tone for traditional entries and brass-finish door hardware.
Specifications
TypeSingle cylinder deadbolt
Material304 stainless steel
Latch gradeANSI Grade 2, adjustable
BacksetAdjustable 60–70mm (2-3/8" to 2-3/4")
Door thickness35–45mm (1-3/8" to 1-3/4")
Cross bore54mm (2-1/8") dia.
Edge bore23mm (15/16") dia.
HandingNon-handed

Download the full 3501 specification sheet (PDF, 2 pages) — door preparation dimensions, the six-step installation sequence, backset adjustment and the paper marker.

Pair It With

Combine with the 7204 Series fire-rated knob lockset or 7201 Series fire-rated lever lockset for a complete entry set. Note: the 3501 is not fire rated — check your local code before adding a deadbolt to a fire-rated or egress door.

Sold and stocked by Universal Fireproof Doors in Brentwood, New York. Contractor and volume pricing available.

What's the lead time for custom sizes?

3-5 Business days, Next day expedition available

Does this come primed or painted?

For an additional fee

Is installation included?

No
