Specifications
| Thickness | 1-3/8" or 1-3/4" |
|---|---|
| Approx. Weight | 1 lb |
| Finish | Dull Chrome (as pictured) |
| Door Type | Apartment entry doors, metal or wood |
| SKU | SP-1602 |
Package Includes
Key Features

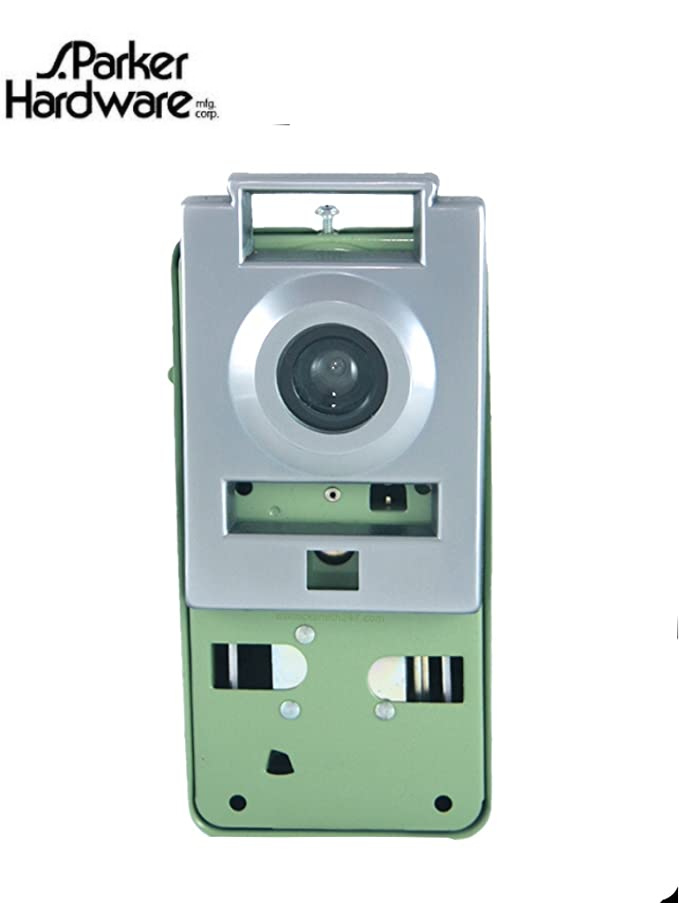

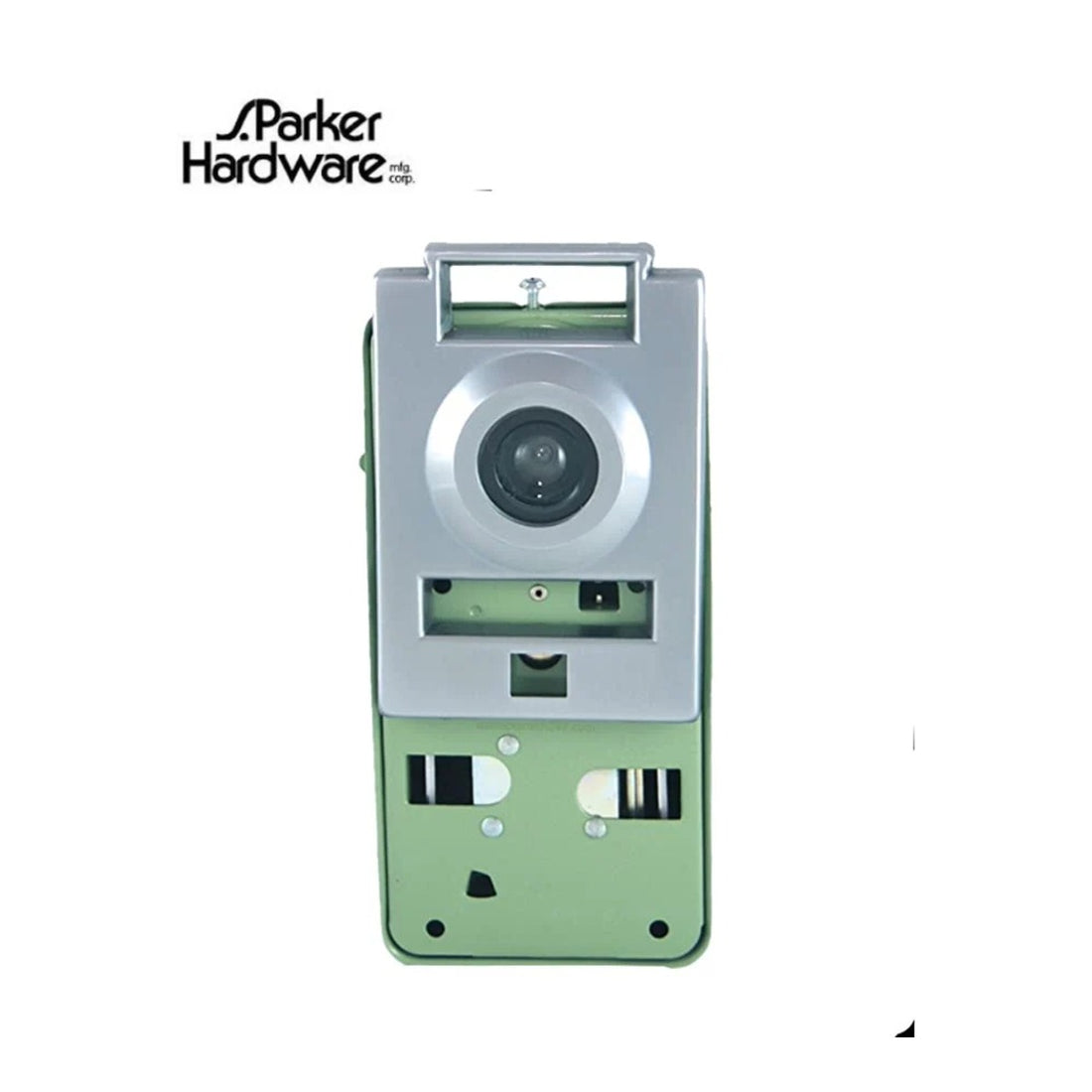

The S. Parker 1602 door chime and viewer combines a push-button doorbell with a 180° peephole in one unit, with no wiring, batteries or electricity. It's the standard apartment entry-door chime found in buildings across New York City, and a quick upgrade for any unit door that needs a doorbell where running power isn't practical.
Visitors press the button on the outside plate, which rings a clear two-note mechanical chime inside the apartment. The wide-angle viewer lets residents see who's at the door before opening it, and built-in frames hold the apartment number and the resident's name. It fits metal and wood doors 1-3/8" or 1-3/4" thick, and installs in two drilled holes with the included paper template.
Features
- Doorbell and peephole in one: a single unit replaces a separate viewer and bell
- Non-electric: no wiring, no batteries, no transformer, nothing to fail in a power outage
- Two-note mechanical chime that rings inside the unit
- 180° wide-angle, one-way viewer for added security
- Name and apartment-number frames with paper insert tags
- Fits metal and wood doors, 1-3/8" and 1-3/4" thick
- Simple install with the included mounting template
- Maintenance-free all-mechanical design
Specifications
TypeDoor viewer and non-electric chime combination
Brand / modelS. Parker Hardware 1602
ChimeTwo-note mechanical, push-button
PowerNone: no wiring, no batteries
Viewer180° wide-angle, one-way
Outside plate4-3/4" H x 3" W
Inside cover6" H x 3-1/8" W
Door thickness1-3/8" or 1-3/4"
Door materialMetal or wood
Door prep1-3/4" hole plus 1/2" hole, 2" on center (template included)
FinishDull chrome outside plate (as pictured)
Name / apt. framesYes, with paper insert tags
Shipping weightApprox. 1 lb
What's Included
- Outside viewer plate with push button

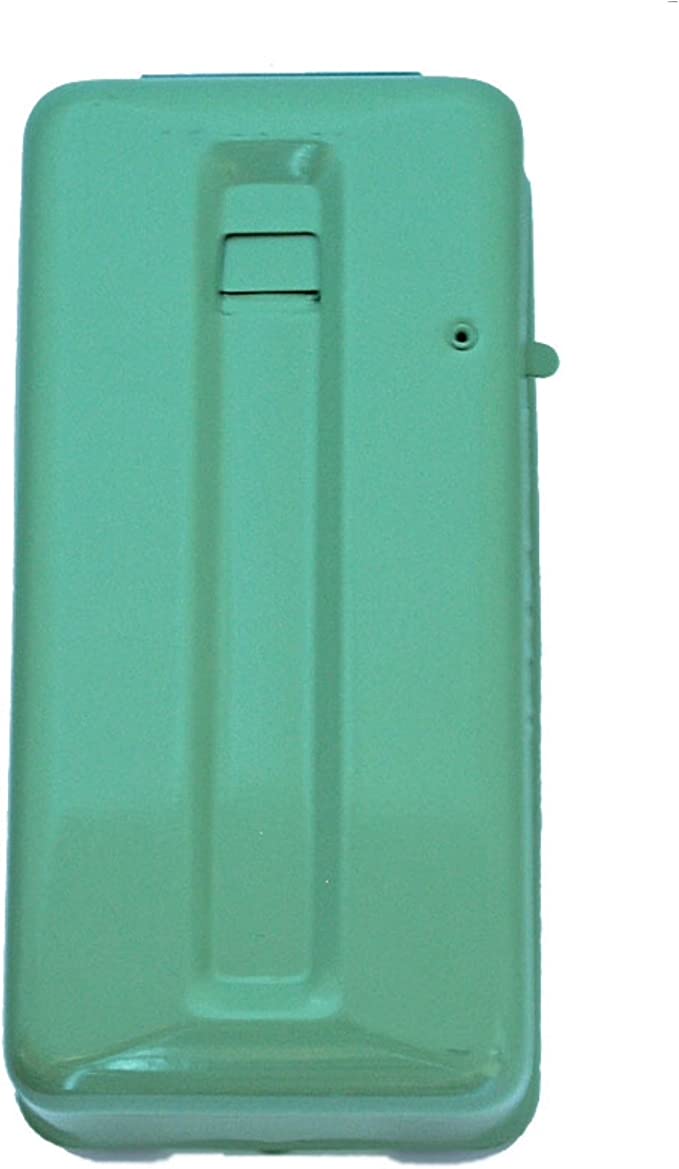

- Inside chime mechanism and cover
- Paper name and apartment-number tags
- Paper mounting template
- Mounting hardware
Installation

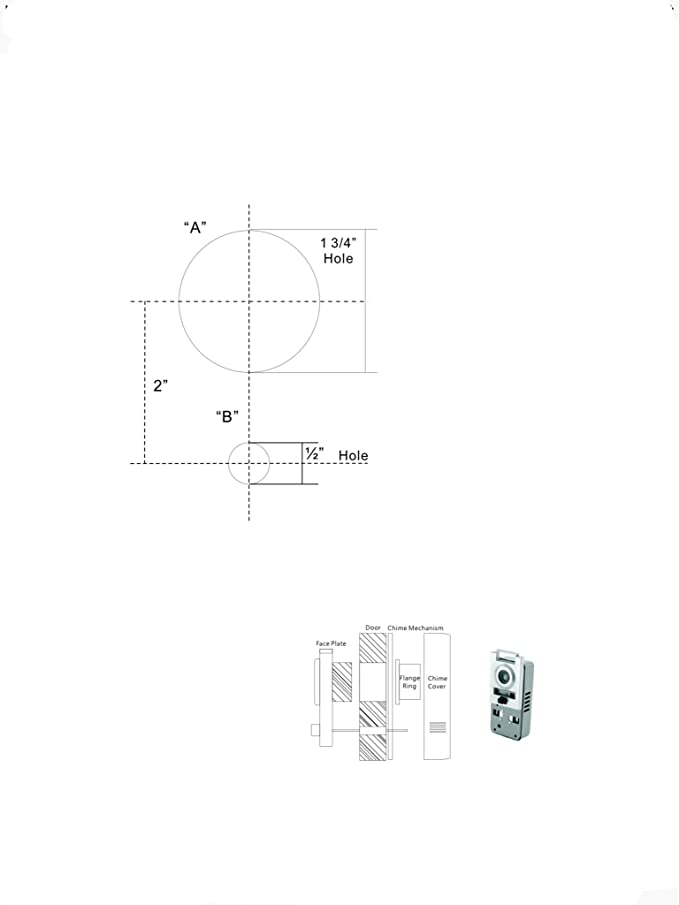

Tape the template to the door, then drill a 1-3/4" hole for the viewer and chime body and a 1/2" hole centered 2" below it. Mount the outside plate, then fasten the chime mechanism and cover on the inside. On hollow metal doors, many installers use a hole saw rated for steel.
Sold by Universal Fireproof Door Co., a Brooklyn, NY manufacturer and supplier of commercial steel doors, frames, and door hardware. In stock for local pickup in Brooklyn and Brentwood, NY, or shipped to your job. Questions? Call us at (718) 455-8442.
What's the lead time for custom sizes?
3-5 Business days, Next day expedition available
Does this come primed or painted?
For an additional fee
Is installation included?
No
