Specifications
| Thickness | 1-3/4" |
|---|---|
| Approx. Weight | 3 lb |
| Lock Prep | Mortise, 1" x 3-3/4" deep pocket, 2-1/2" backset |
| Finish | Brass |
| SKU | B071Z957KP |
Package Includes
Key Features

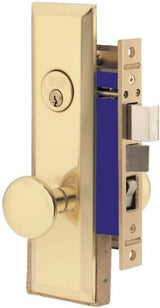

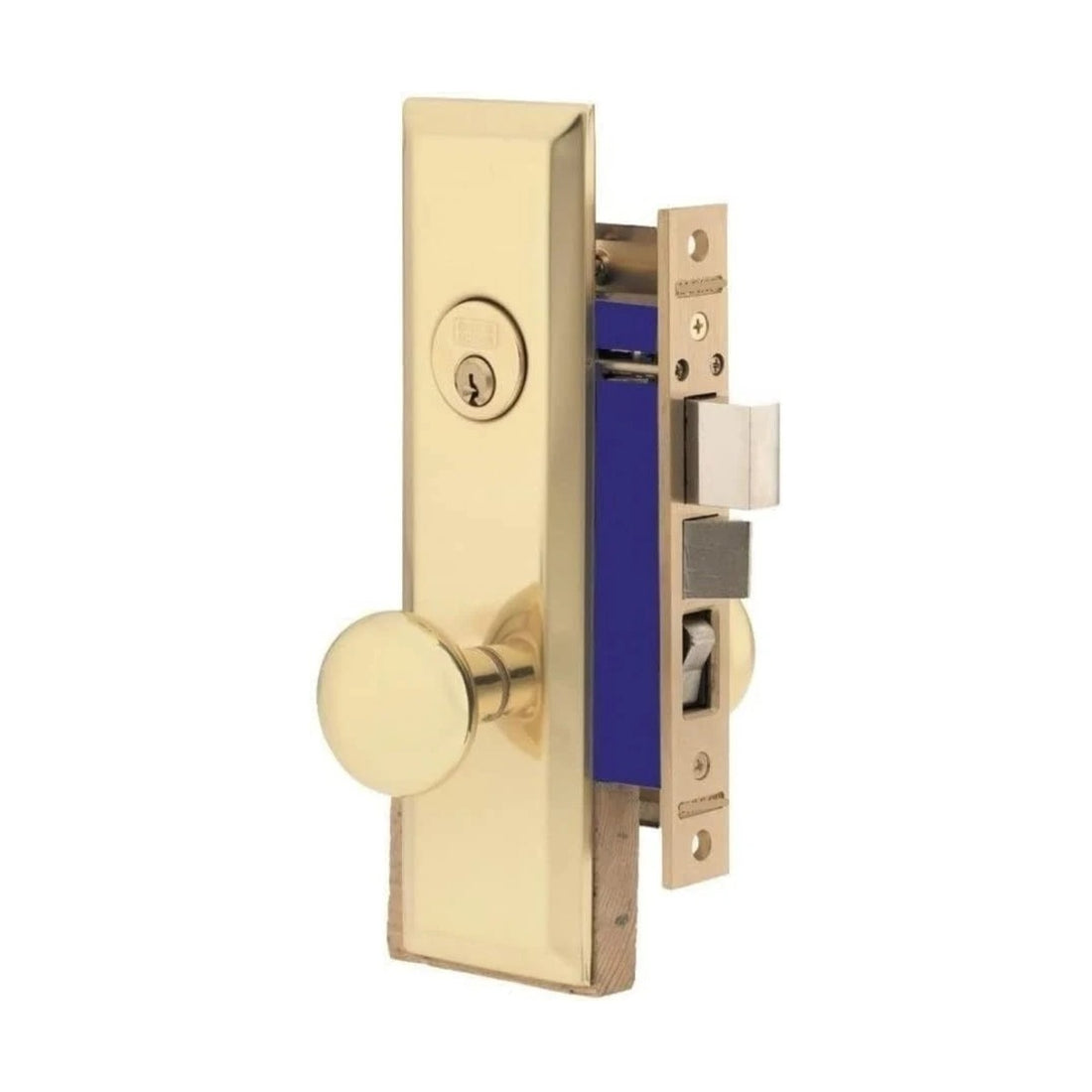

This Maxtech mortise apartment entry lockset is the classic knob-and-deadbolt lock found on apartment unit doors throughout New York City. It pairs a solid brass deadbolt with a latchbolt in a single mortise case, with a 2-1/2" backset and a 1" x 7-5/8" faceplate. It is a direct replacement for worn or broken apartment entry locks on standard 1-3/4" steel and wood doors.
The 1-1/8" mortise cylinder uses the common SC1 (Schlage C) keyway and is easy to rekey. Two keys are included. Long escutcheon plates (2-3/4" x 10" outside, 2-1/4" x 7" inside) cover old prep holes and give a clean finished look.
Check your measurements before ordering. Mortise locks are not one-size-fits-all. Compare your existing lock's faceplate, backset and cylinder location with the dimension drawing and drilling template in the product photos.
Features
- Solid brass deadbolt with a 1" throw for added security
- 2-1/2" backset, 1" x 7-5/8" edge faceplate
- 1-1/8" 5-pin mortise cylinder, SC1 keyway, easy to rekey
- Knob trim on both sides with an interior turnpiece for the deadbolt
- Long-plate escutcheons cover old holes on replacement jobs
- Handed lock: available in Left Hand and Right Hand
Specifications
What's Included
- Mortise lock body with deadbolt and latchbolt
- 1-1/8" mortise cylinder with 2 SC1 keys
- Exterior plate with knob
- Interior plate with knob and deadbolt turnpiece
- Strike plate
- Mounting screws and thru-bolts
Which handing do I need?
Stand on the outside of the door (the hallway or keyed side) and push the door open.
- Right Hand: hinges on the right, knob and cylinder on the left.
- Left Hand: hinges on the left, knob and cylinder on the right.
If the door pulls toward you from the outside, it is a reverse-bevel door. Call us before ordering and we will confirm the right lock.
Installation
Fits a door mortised 1" wide by 3-3/4" deep. Drilling template: 1-1/4" cylinder hole, 7/8" turnpiece hole, 7/8" knob hole, and 1/2" thru-bolt holes. The installation sheet and full-size template are shown in the product photos. Professional installation is recommended when converting a door from a different lock type.
Sold by Universal Fireproof Door Co., a Brooklyn, NY manufacturer and supplier of commercial steel doors, frames and door hardware. Local pickup in Brooklyn and Brentwood, NY. Questions about fit or handing? Call us at (718) 455-8442.
What's the lead time for custom sizes?
3-5 Business days, Next day expedition available
Does this come primed or painted?
For an additional fee
Is installation included?
No
