Specifications
| Approx. Weight | 5 lb |
|---|---|
| Lock Prep | Mortise, Marks 116A/114A prep, 2-1/2" backset, 1-1/16" x 7-5/8" front |
| Finish | Satin Chrome (US26D / 626) |
| Door Type | Apartment & office entry doors (mortise-prepped) |
| SKU | B019VF2CJG |
Package Includes
Key Features
The Maxtech heavy-duty mortise entrance lever lockset is a direct-fit replacement for the Marks USA Metro 116A / 114A door prep, the mortise lock found on thousands of apartment and office doors across New York City. It uses the same 1-1/16" x 7-5/8" faceplate and 2-1/2" backset, so it drops into an existing Marks-prepped door with no new cutting or drilling.
The outside lever is controlled by a key cylinder and the inside by a thumbturn that throws a 1" deadbolt, giving apartment entry doors and office suites both everyday latching and real deadbolt security. Solid satin chrome (US26D) escutcheon plates are thru-bolted for strength, and the ADA-compliant levers are easy to operate for every tenant and visitor.
Features
- Direct replacement for Marks USA Metro 116A / 114A mortise lock preps
- 1" deadbolt operated by key outside, thumbturn inside
- Spring-latch with lever operation from both sides
- Thru-bolted escutcheon trim for a solid, tamper-resistant mount
- ADA-compliant lever handles with lever support springs
- Independent, spring-loaded captive spindles
- Solid brass 1-1/8" mortise cylinder, 5-pin, easy to rekey, 2 keys included
- Satin chrome (US26D) finish that matches most commercial hardware
Specifications
What's Included
- Mortise lock body with latchbolt and 1" deadbolt
- Outside escutcheon with lever and key cylinder
- Inside escutcheon with lever and thumbturn
- 1-1/8" mortise cylinder with 2 keys
- Strike plate and mounting hardware
Choosing the Right Hand

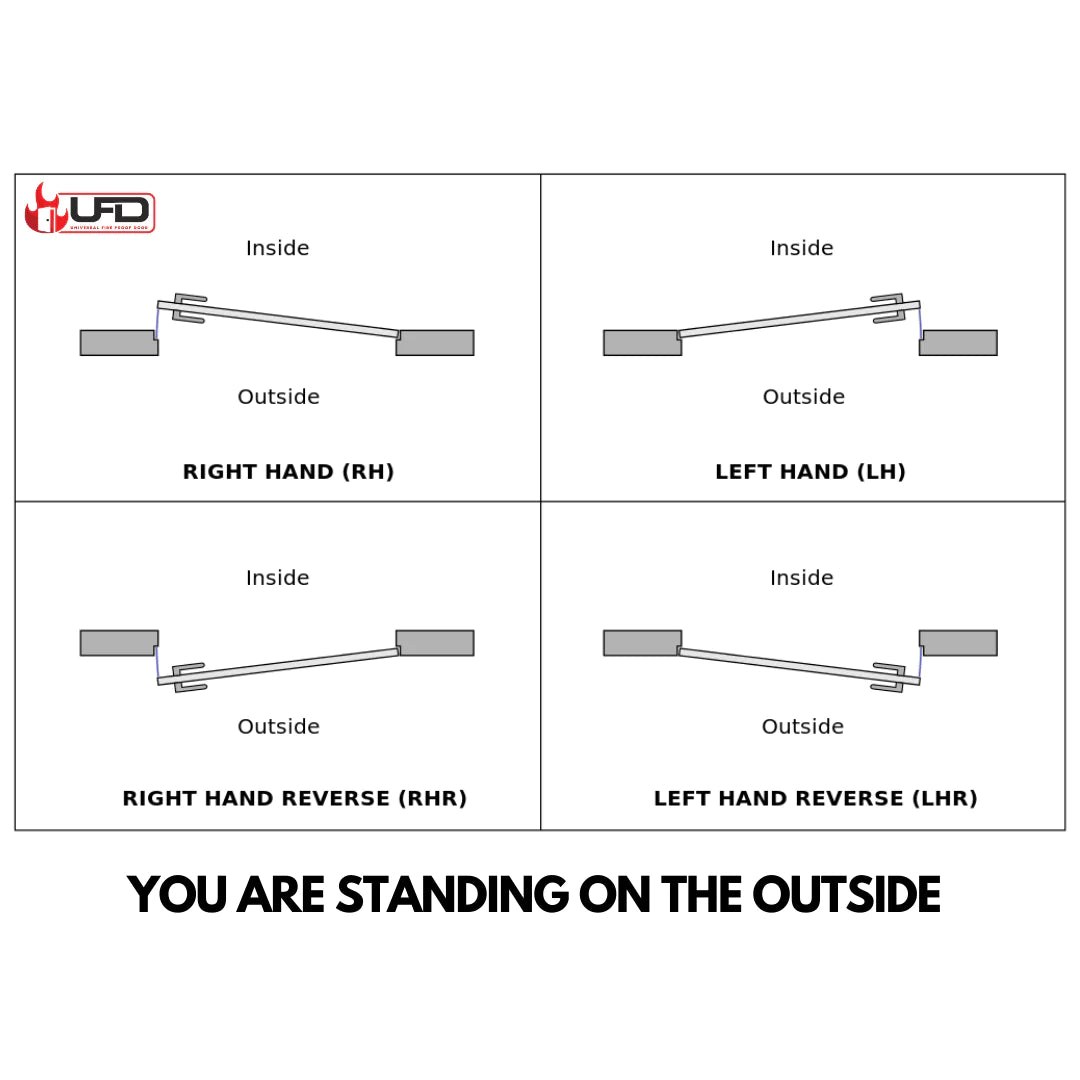

Stand on the outside of the door (the key side). If the hinges are on your left, order Left Hand. If the hinges are on your right, order Right Hand. See the handing chart in the photos. For reverse-bevel (outswing) doors, call us before ordering and we will confirm the right lock for your opening.

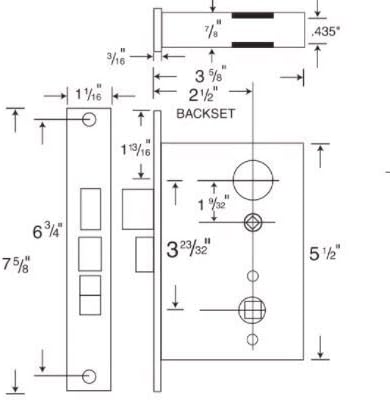

Before you order: measure your existing lock against the dimension drawing in the photos. The faceplate (1-1/16" x 7-5/8") and 2-1/2" backset must match your door prep for a drop-in fit.
Sold by Universal Fireproof Door Co., a Brooklyn, NY manufacturer and supplier of commercial steel doors, frames, and door hardware. In stock for local pickup in Brooklyn and Brentwood, NY, or shipped to your job. Questions about fit or your door prep? Call us at (718) 455-8442.
What's the lead time for custom sizes?
3-5 Business days, Next day expedition available
Does this come primed or painted?
For an additional fee
Is installation included?
No
