Avoid AHJ Rejections: Panic Hardware Rules and the 50 Occupant Trigger

Author: Esteban Galicia

Updated:

Panic hardware rules title card illustration

Panic hardware becomes mandatory when a door serves a Group H occupancy of any size or when it serves an assembly or educational space with an occupant load of 50 or more, under the 2021 IBC. Before specifying anything, confirm the jurisdiction’s adopted code edition, calculate the actual occupant load, and check whether the door currently latches. Then verify the hardware carries the correct UL or ANSI listing, sits within the accepted mounting height, and covers the required span of the door leaf.

TL;DR:

  • Panic hardware becomes mandatory on doors serving Group H occupancies or spaces with an occupant load of 50 or more in assembly or educational areas, depending on the adopted code edition and occupant calculation.
  • The hardware must be UL 305 listed, mounted between 34 and 48 inches, and capable of withstanding a maximum unlatching force of about 15 pounds, with ADA operability limits considered separately.
  • Certain spaces like refrigeration rooms, electrical rooms within 25 feet of equipment, and high-hazard occupancies always require panic hardware regardless of occupant load.
  • When pairing panic hardware with electrified locks, the release switch must immediately cut power upon activation, and sensor-based release methods are no longer accepted in recent code cycles.
  • Proper documentation, including occupant load calculations, hardware listings, wiring diagrams, and installation measurements, is crucial for passing inspections and avoiding compliance issues.
Ufdoors
Keep Fire Door Compliance Moving
Ufdoors manufactures and installs fire-rated steel doors, frames, and hardware for contractors and property managers managing urgent safety needs.

Table of Contents

Model-code triggers: IBC, NFPA 101, and NFPA 70

Two model codes drive most panic hardware decisions, and they do not always agree. IBC Section 1010.2.9 requires panic or fire exit hardware on swinging doors serving any Group H occupancy, and on doors serving rooms in Group A or Group E occupancies with an occupant load of 50 or more. NFPA 101 applies panic hardware to required means-of-egress doors in similar occupancy classes, but the historical occupant-load threshold in some NFPA editions has been set higher, near 100. The gap matters because a door that is exempt under one code can be required under the other.

NFPA 70 and related electrical code references to add a separate layer, since they govern the wiring behind any electrified locking function tied to the panic device. A professional working across jurisdictions should treat the following as a standing checklist:

  • Confirm which edition of the IBC or NFPA 101 the jurisdiction has adopted, including any local amendments.
  • Calculate the occupant load for the specific room or area served, not the building as a whole.
  • Check whether the space falls under Group H, since any occupant load there triggers the requirement.
  • Apply the more stringent rule whenever the adopted codes disagree.

Spaces that commonly require panic hardware

Certain room types trigger panic hardware regardless of general occupancy classification, and professionals should check each one individually rather than assuming a blanket exemption.

  1. Assembly and educational spaces. Any room or area with an occupant load of 50 or more in Group A or Group E falls under IBC 1010.2.9, covering every egress door serving that space.
  2. High-hazard occupancies. Group H spaces require panic hardware at any occupant load, since the hazard classification itself is the trigger, not headcount.
  3. Refrigeration machinery rooms. Some refrigeration machinery rooms of substantial size typically require outswing doors equipped with panic hardware to allow immediate exit in an ammonia or refrigerant leak scenario.
  4. Electrical rooms, transformer vaults, battery and energy storage rooms, and modular data centers. Equipment working-space rules often extend the panic hardware requirement to any door within 25 feet of the equipment, even when the room’s occupant load is low.

Each of these categories can appear inside a building that otherwise has no panic hardware requirement, so a door-by-door review of the means of egress is the only reliable method.

Hardware listings, force limits, and mounting specs

Once a door is confirmed to need panic hardware, the device itself has to meet specific listings and dimensional rules. Panic hardware must be listed to UL 305, and any fire exit hardware used on a rated door must carry a UL 10C listing along with fire-door certification, a distinction covered in detail by I Dig Hardware. ANSI/BHMA A156.3 is the performance standard referenced by NFPA for exit devices generally.

  • Panic hardware requires a UL 305 listing; fire exit hardware on rated doors requires UL 10C.
  • The actuating portion of the device must span a substantial part of the width of the door leaf, generally around half or more.
  • Mounting height typically falls within a range considered accessible, often between about 34 and 48 inches above finished floor, with limited exceptions for existing conditions under NFPA guidance.

The code sets a maximum unlatching force generally around 15 lbf for panic and fire exit hardware, while ADA operable-parts guidance recommends no more than 5 lbf for accessible operation. That gap is a recurring point of friction on inspections, and it has to be documented, not ignored. On wide doors, a touchpad-style device may not reach the half-leaf minimum, a problem I Dig Hardware has flagged as a common field failure; a crossbar device or an AHJ-approved alternate layout usually resolves it.

Coordinating accessibility with operating-force limits

Accessible reach and operating-force rules sit alongside panic hardware code, and the two do not always align cleanly. The Access Board’s operable-parts guidance requires the device to work with one hand, without tight grasping, pinching, or twisting, and sets a usable reach range of 15 to 48 inches.

  • Confirm the device is operable with one closed fist, since grasping or twisting motions fail the accessibility standard.
  • Keep the actuating bar within the 15 to 48 inch reach range whenever the door is part of an accessible route.
  • Document the 15 lbf code maximum against the 5 lbf accessible-operation recommendation, since both figures can appear in the same inspection.

Where a low-force device cannot be sourced or adjusted to meet both numbers, some specifiers route accessible egress through an alternate compliant door rather than forcing a single device to satisfy conflicting targets.

Pro Tip: Keep the manufacturer’s operating-force test report in the submittal package. It settles the ADA-versus-code force question before the inspector has to ask.

Operating force test on fire door

Electrified locks and what recent code changes restrict

Panic hardware can be paired with an electrified lock, but the release method is tightly controlled. Codes require that pressing the panic device directly and immediately interrupt power to the lock, which is why hardware-integrated switches are the accepted release method rather than a separate control system.

  • The panic device’s built-in switch must cut power to the lock the instant the bar is pressed.
  • As of the 2024 code cycle, sensor-approach release (motion or proximity sensors unlocking the door as someone nears it) is no longer an accepted substitute on doors required to have panic hardware, a change tracked by I Dig Hardware.
  • Exceptions, including certain courtroom configurations and delayed-egress setups, still require case-by-case AHJ approval with wiring and control diagrams submitted for review.

Anyone specifying electrified panic hardware should confirm the adopted edition first, since a design that passed under an older code may no longer clear the current one.

A compliance checklist for design, installation, and inspection

A door that looks correct on paper can still fail inspection over a missed measurement or a missing document. Running through the same sequence on every project cuts that risk.

  1. Design and procurement. Confirm the adopted code edition, document the occupant-load calculation, verify UL or ANSI listings on the specified hardware, and check the actuating-bar length against door width.
  2. Installation. Measure mounting height against the 34 to 48 inch range, test unlatching force with a calibrated gauge, confirm one-handed operation, check fire-rating labels on the hardware itself, and test any electrified-release circuit under power loss.
  3. Documentation for the AHJ. Assemble product data sheets, listing and certification reports, the occupant-load worksheet, and wiring or control schematics for electrified hardware.
Verification stage What to check Why it matters
Design Occupant load, adopted code edition Determines whether panic hardware applies at all
Procurement UL 305 / UL 10C listing, ANSI/BHMA A156.3 Confirms the device is legally usable on the door type
Installation Mounting height 34"-48", unlatching force at or below 15 lbf Matches physical installation to code limits
Inspection Wiring schematics, one-handed operation test Gives the AHJ what it needs to sign off

A locksmith installation guide covering panic bar mounting can serve as a field reference during this stage, particularly for crews unfamiliar with a specific device line.

What years of code coordination on live projects teaches you

What years of code coordination on live projects teaches you — overview diagram

Most disputes over panic hardware do not come from a missing device. They come from a door that was compliant under an old code edition and never got revisited when the jurisdiction adopted a new one. The ADA-versus-code force conflict comes up on nearly every accessible-route project, and the fix is rarely a different device: it is better documentation of the trade-off, submitted before the inspector asks for it.

A specialist company works through these questions on fire-rated door and hardware projects, including emergency replacements where a failed device has to be swapped and re-certified fast. That repetition across jobs is what surfaces the recurring gaps, like sensor-release systems that no longer meet current code or touchpad devices installed on doors too wide for them.

— Esteban

Compliant hardware and installation when you need it fast

Certain suppliers offer panic and fire exit hardware built to meet the listings this article covers, with fast delivery options for projects on a deadline.

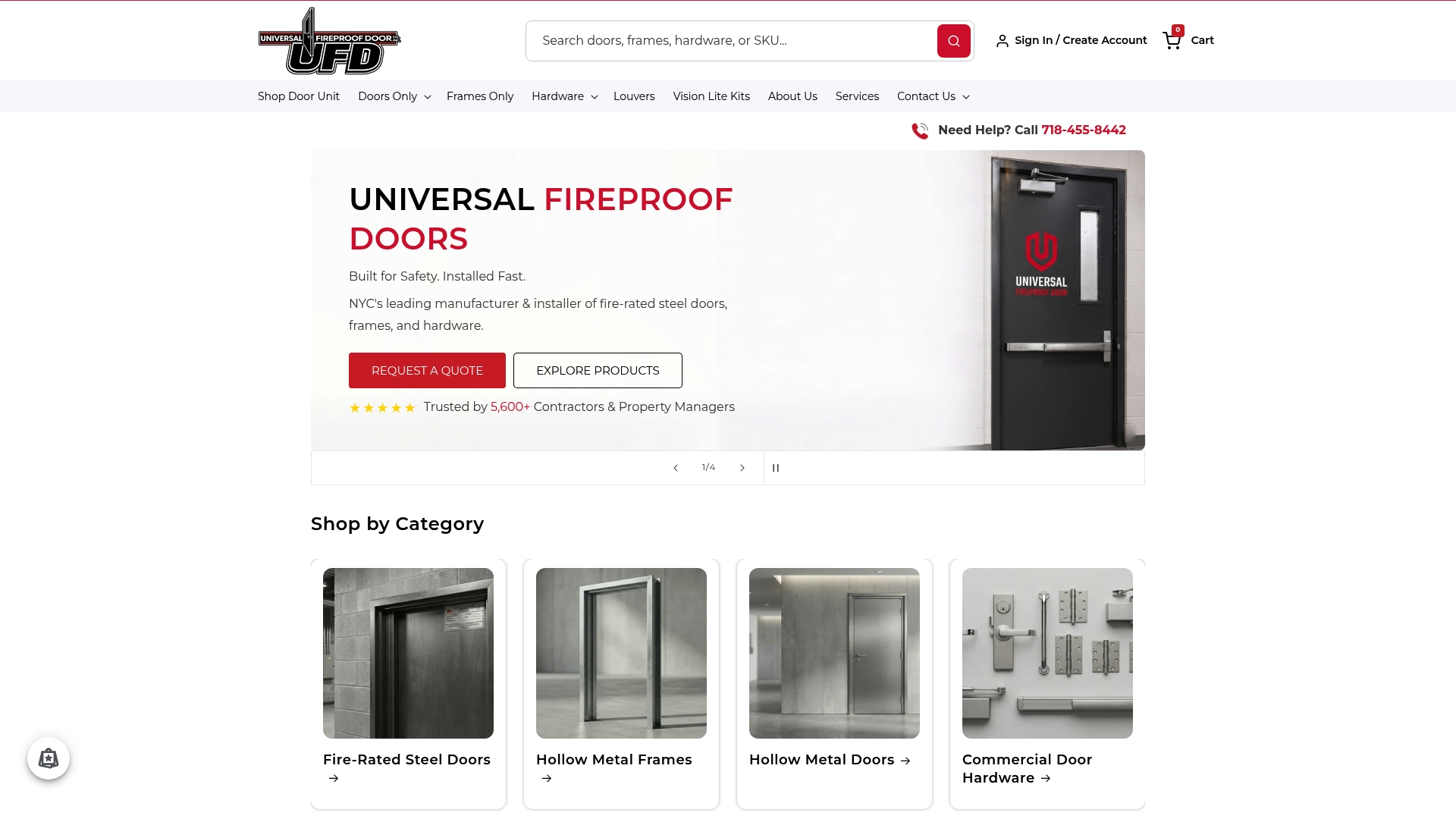

Ufdoors

Beyond the hardware itself, Universal Fireproof Doors offers full supply, installation, and emergency replacement service, including support coordinating documentation with the AHJ. Browse the full catalog of fire-rated doors and hardware or request a site survey and quote for your next project.

Sources

FAQ

Do electrical rooms require panic hardware?

Electrical rooms, transformer vaults, battery or energy storage rooms, and modular data centers can require panic hardware when a door falls within the equipment’s required working space, commonly cited as a 25-foot rule. The trigger depends on proximity to the equipment rather than the room’s general occupant load.

What triggers panic hardware?

Under IBC 1010.2.9, panic hardware is triggered by any Group H occupancy regardless of occupant load, or by a Group A or Group E space with an occupant load of 50 or more. NFPA 101 applies similar triggers but has used historically higher occupant-load thresholds in some editions, so the adopted local code governs.

Panic hardware is typically mounted between 34 and 48 inches above finished floor, a range drawn from NFPA and IBC guidance. Some existing-condition exceptions apply, but new installations should stay within this range unless the AHJ approves otherwise.

What are the key differences between panic hardware and exit hardware?

Panic hardware is the general term for a cross-bar or touchpad device listed to UL 305 that allows rapid one-motion egress. Fire exit hardware is the same type of device built and listed to UL 10C for use on fire-resistance-rated doors, a distinction detailed by I Dig Hardware, and the two are not interchangeable on a rated opening.

Can panic hardware be paired with an electrified lock?

Yes, but the panic device’s built-in switch must directly and immediately cut power to the lock when pressed. Sensor-approach release is no longer an accepted substitute on doors required to have panic hardware under recent code updates, so wiring diagrams should be submitted to the AHJ for review.
