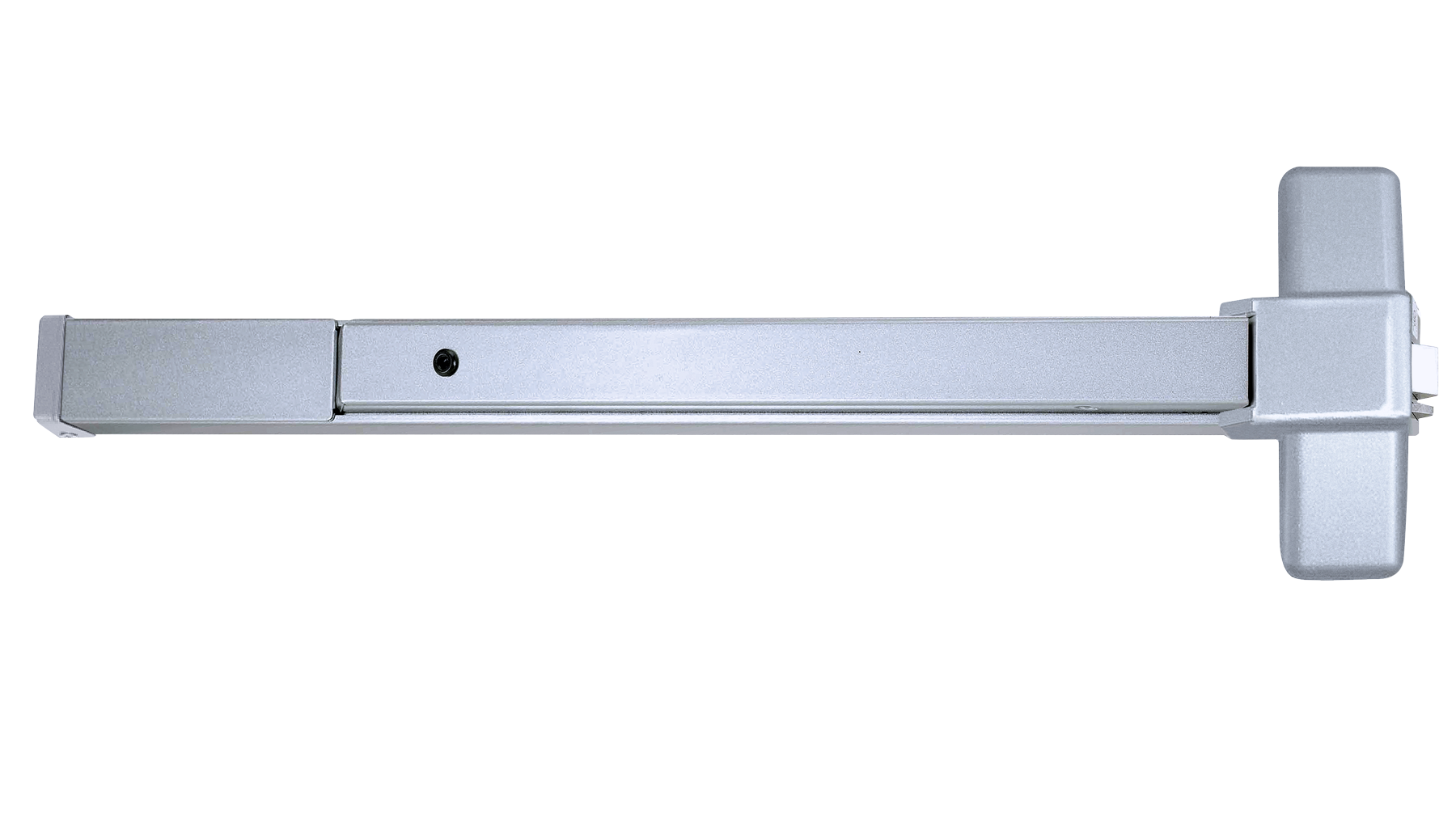

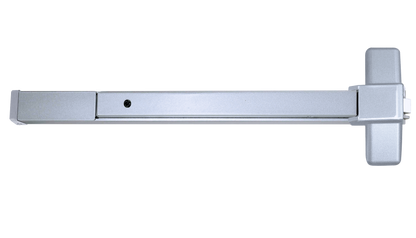

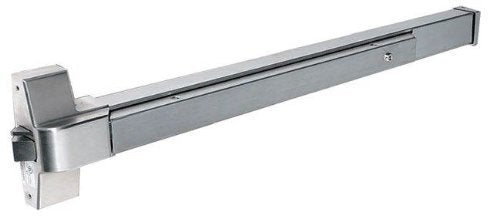

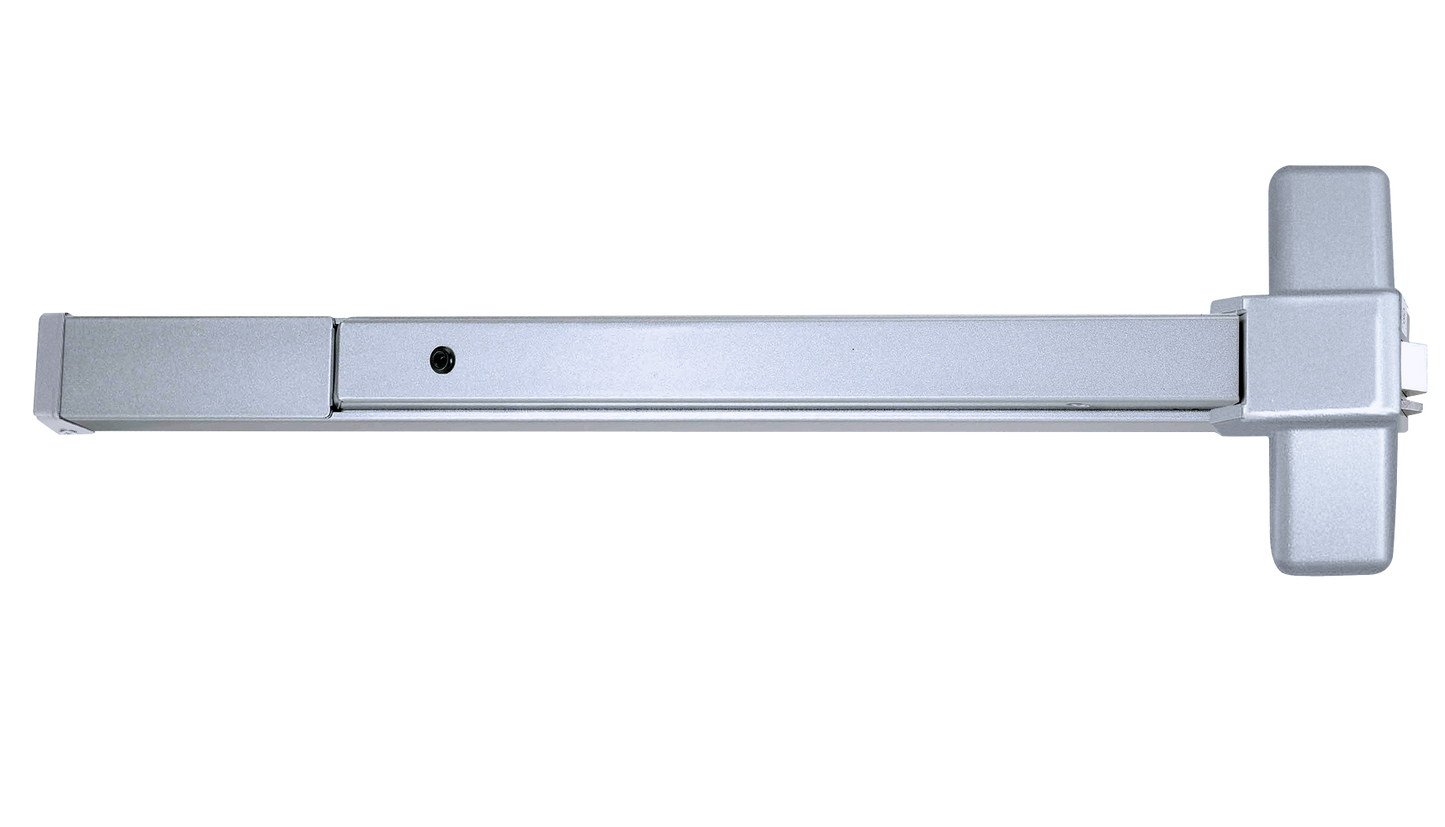

The 8300 Series Exit Device is a grade 1 heavy-duty, aluminum rim exit device with standard exterior pull plate. This exit device is suitable for metal or wood doors. It is fire rated up to three hours and fits 28” to 36” doors.

• Performance

  Complies with ANSI A156.3, 1994

  Grade 1

  UL/ULC listed

• Rail

  Fits 28” to 36” doors

• Latch

  Stainless steel 5/8” throw

  Deadlatch feature

• Backset

  2-3/4”

• Strike

  Made with slotted holes for adjustments

• Cylinder

  SCC - C keyway

  6-pin solid brass

  Keyed different (KD)

• Fasteners

  Accommodates wood or metal doors

• Door Range

  1-3/8” - 2”

• Door Preparation

  Surface mounted
