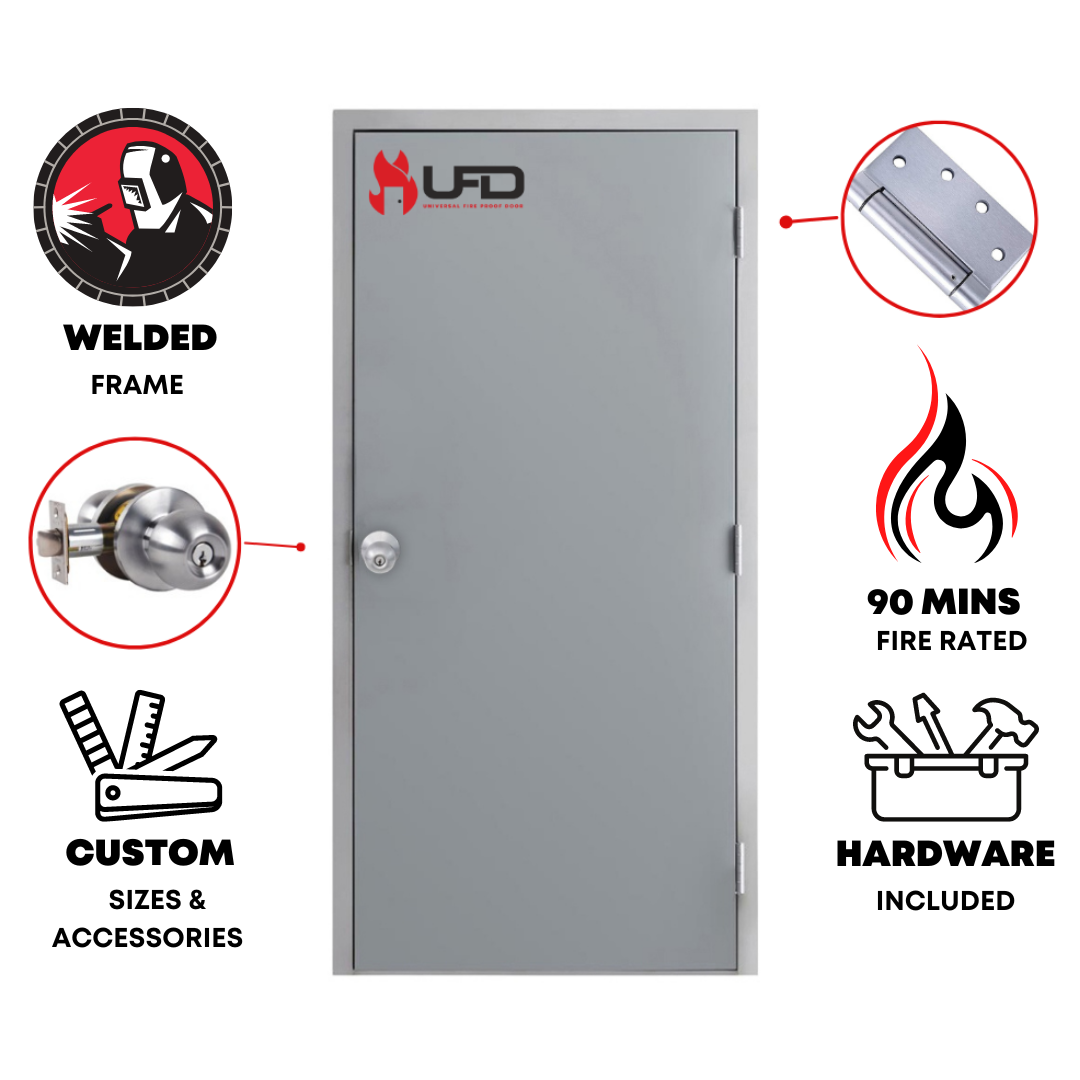

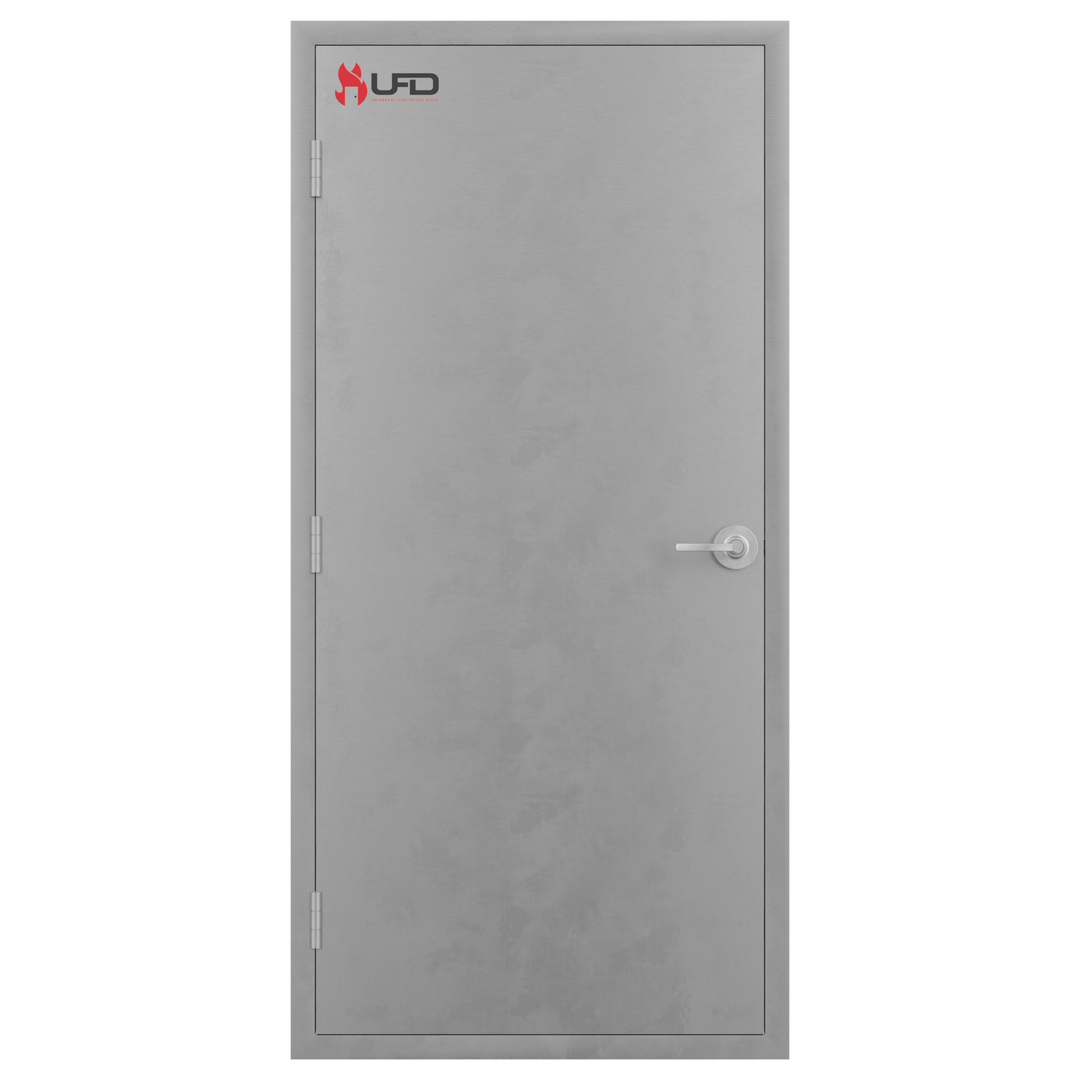

30 in. x 84 in. Hollow Metal Door With Welded Frame, and Hardware Included

Product details

The Hollow Metal Door Package consists of the following:


  • A 20 gauge steel hollow metal door
    • A 16 gauge steel three-piece knockdown frame
    • Three 4-1/2" x 4-1/2" square corner plain spring hinges with a US26D satin chrome finish
    • A cylindrical knob lock (Please specify lock function)
    • Optional fire-rated fusible link covers that are already installed on the door
    • Optional clear safety tempered glass window, 1/4" thick (already installed on the door)

    The actual size of the hollow metal door is  29-3/4" x 83-1/4". It is recommended that a rough opening of 32" in width and 85" in height be created for the door frame to fit properly.

    Actual Door Size

    • 29-3/4" x 83-1/4"

    For Frames the Recommended Rough Opening Dimensions are:

    • Rough Opening Width: 32"
    • Rough Opening Height: 85"

    Deadbolt Functions

    • Single Cylinder Deadbolt: Deadbolt is operated by key on the outside and a thumbturn on the inside.
    • Double Cylinder Deadbolt: Deadbolt is operated by key on the outside as well as inside.

    The Cylindrical Locks are Available in Different Functions:

    • Storeroom: The latch can be operated by rotating the inside lever or using a key in the outside lever. The outside lever is always fixed.
    • Entrance: Latchbolt can be operated by a lever from either side. The outside lever can be locked by turning a button from the inside and unlocked by using a key from outside or by rotating the inside lever.
    • Passage: Latchbolt can be operated by a lever from either side at all times.
    • Classroom: Latchbolt can be operated by a lever from each side. The outside lever can be locked or unlocked by a key from the outside, and the inside lever always operates the latch.
    • Privacy: Latchbolt can be operated by a lever from either side. The outside lever can be unlocked by pushing a button on the inside and by rotating the inside lever or by using an emergency release on the outside.

    Steel Door Specifications

    • Insulated with honeycomb core
    • Galvannealed (standard)
    • 7 gauge hinge reinforcements
    • Reinforced 161 lock prep
    • Meets ANSI standards
    • Universal 4-1/2" hinge prep
    • Made in USA Long Island New York
    • Inverted top and bottom channel
    • Installed steel cap standard

    Commercial Hollow Metal Door and Frame, 20 Gauge Honeycomb Core Door with 16 Gauge Welded Frame, Lever Lock, Made in New York City

    Universal Fireproof Doors commercial hollow metal steel doors are the highest quality in the industry. Manufactured from heavy duty 20 gauge steel, these doors are designed for installation in any commercial building. The drywall door frame is shipped in knock down form and assembles very easily. The drywall frame is designed to wrap around an interior wall with drywall. The drywall frame is manufactured from heavy duty 16 gauge steel and provides a durable structure for the hollow metal door.

    Commercial Grade - 20 Gauge Steel Door & 16 Gauge Steel Frame

    Universal Fireproof hollow metal doors are manufactured per order and designed specifically for use on commercial buildings. When we say commercial grade, we mean it. our doors are manufactured from thick 20 gauge heavy duty steel and the door frames are constructed from 16 gauge steel. This is the industry standard for any hollow metal door and frame used in any commercial building and it offers the best security. Unfortunately, there are many residential grade hollow metal doors on the market today being advertised as commercial grade. Many of these residential grade steel doors purposely do not specify the gauge of steel the door is constructed from. The harsh reality is that if the door's steel gauge is not advertised or listed, then it is most likely constructed from thin 24 or 26 gauge steel with no insulated core and designed for residential light duty homes. When residential steel doors are installed in a commercial building this results in the metal doors denting and deforming within days of installation. Not to mention, the thin gauge residential grade steel provides much less security than a commercial grade 20 gauge steel door. You will not have this issue with our hollow metal door system. Universal hollow metal doors feature heavy duty 20 gauge steel with an insulated honeycomb core, lock reinforcement, and hinge reinforcement. Our frames are designed using 16 gauge steel so they will not bend or dent easily.

    Best Value For Security

    Universal hollow metal doors are ideal for security doors. Unlike wood or aluminum glass doors, steel doors can provide much more security and durability. Wood doors often crack and storefront glass doors are vulnerable to broken glass. If your commercial building is in an area that is subject to abuse or break ins, the Universal commercial steel door is your best option with the best value. The heavy duty steel door construction and frame is much more durable than aluminum or wood. Steel doors also have a much higher impact resistance than commercial wood or storefront doors.

    Energy Efficient

    Our hollow metal steel doors come standard with an insulated honeycomb core. This core type helps retain your commercial building's energy.
