Name: 30 in. x 80 in. Hollow Metal Door With Knock Down Frame, and Hardware Included
Brand: Universal Fireproof Door
Price: 550.0 USD
Availability: InStock

SKU:

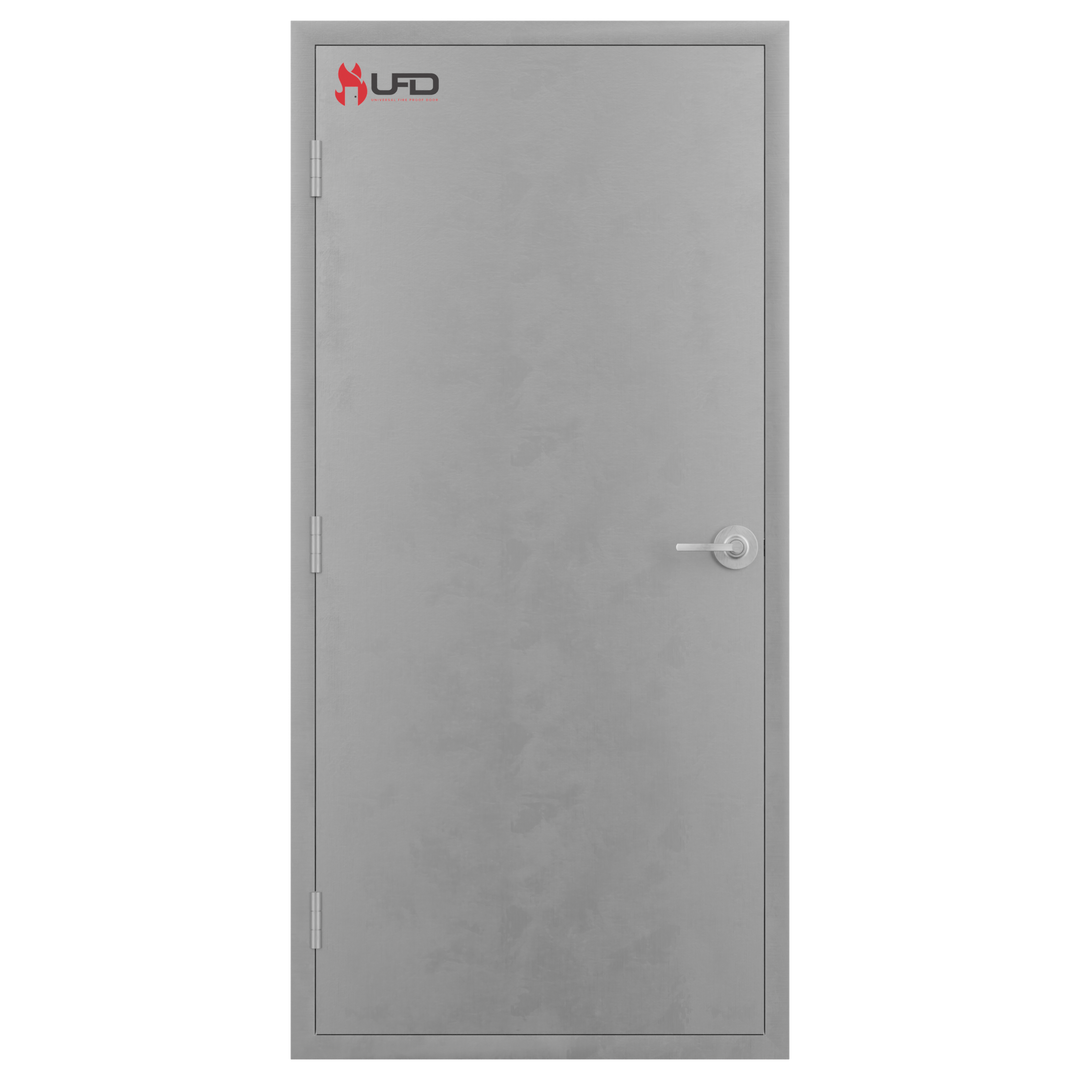

30 in. x 80 in. Hollow Metal Door With Knock Down Frame, and Hardware Included

Specifications

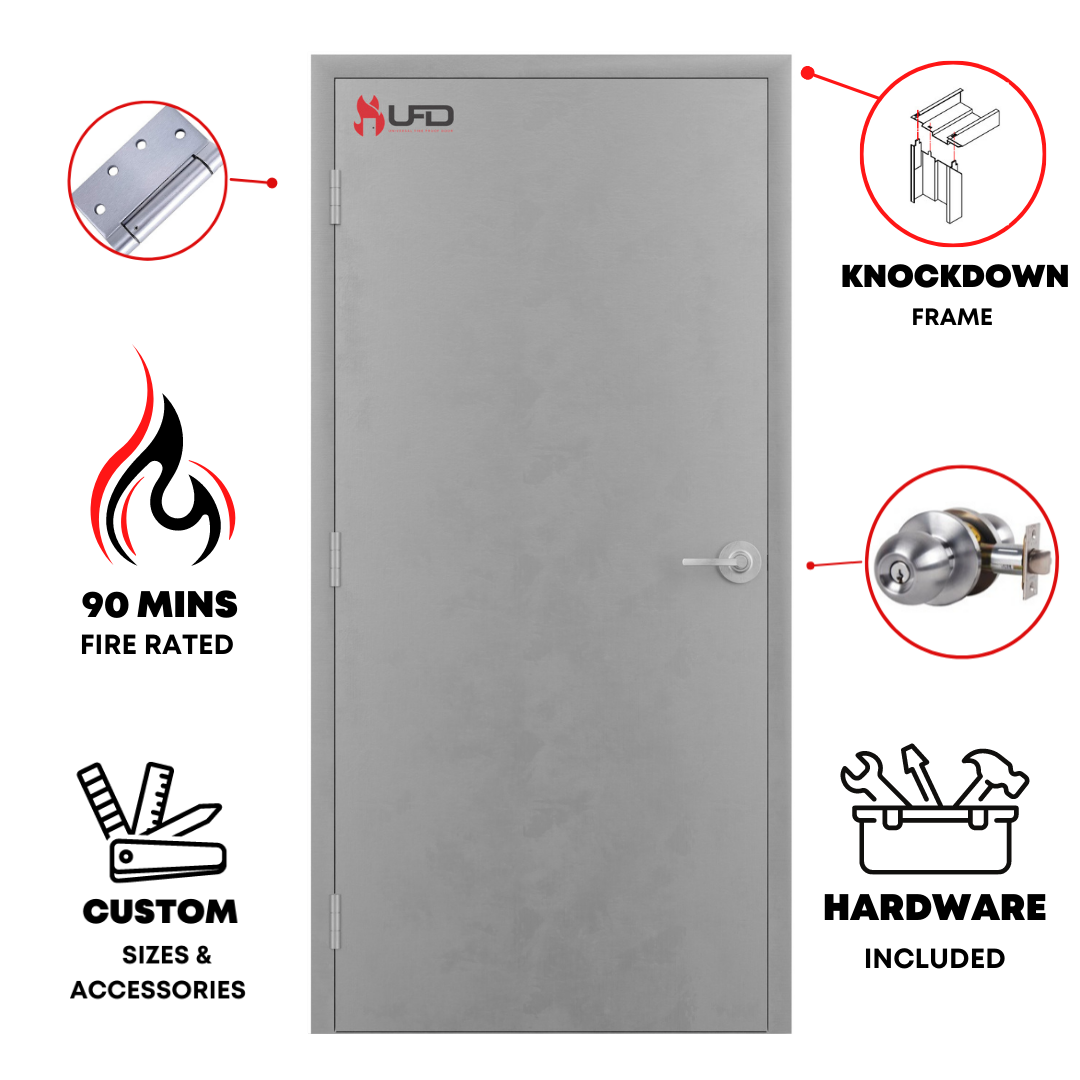

The Hollow Metal Door Package consists of the following:

A 20 gauge steel hollow metal door
A 16 gauge steel three-piece knockdown frame
Three 4-1/2" x 4-1/2" square corner plain spring hinges with a US26D satin chrome finish
A cylindrical knob lock (Please specify lock function)
Optional fire-rated fusible link covers that are already installed on the door
Optional clear safety tempered glass window, 1/4" thick (already installed on the door)

The actual size of the hollow metal door is 35-3/4" x 83-1/4". It is recommended that a rough opening of 37" in width and 85" in height be created for the door frame to fit properly.

Actual Door Size

29-3/4" x 79-1/4"

For Frames Wrapping Around the Wall, the Recommended Rough Opening Dimensions are:

Rough Opening Width: 32"
Rough Opening Height: 81"

Deadbolt Functions

Single Cylinder Deadbolt: Deadbolt is operated by key on the outside and a thumbturn on the inside.
Double Cylinder Deadbolt: Deadbolt is operated by key on the outside as well as inside.

The Cylindrical Locks are Available in Different Functions:

Storeroom: The latch can be operated by rotating the inside lever or using a key in the outside lever. The outside lever is always fixed.
Entrance: Latchbolt can be operated by a lever from either side. The outside lever can be locked by turning a button from the inside and unlocked by using a key from outside or by rotating the inside lever.
Passage: Latchbolt can be operated by a lever from either side at all times.
Classroom: Latchbolt can be operated by a lever from each side. The outside lever can be locked or unlocked by a key from the outside, and the inside lever always operates the latch.
Privacy: Latchbolt can be operated by a lever from either side. The outside lever can be unlocked by pushing a button on the inside and by rotating the inside lever or by using an emergency release on the outside.

Steel Door Specifications

Insulated with honeycomb core
Galvannealed (standard)
7 gauge hinge reinforcements
Reinforced 161 lock prep
Meets ANSI standards
Universal 4-1/2" hinge prep
Made in USA Long Island New York
Inverted top and bottom channel
Installed steel cap standard

Commercial Hollow Metal Door and Frame, 20 Gauge Honeycomb Core Door with 16 Gauge Drywall Knock Down Frame, Lever Lock, Made in New York City

Universal Fireproof Doors commercial hollow metal steel doors are the highest quality in the industry. Manufactured from heavy duty 20 gauge steel, these doors are designed for installation in any commercial building. The drywall door frame is shipped in knock down form and assembles very easily. The drywall frame is designed to wrap around an interior wall with drywall. The drywall frame is manufactured from heavy duty 16 gauge steel and provides a durable structure for the hollow metal door.

Commercial Grade - 20 Gauge Steel Door & 16 Gauge Steel Frame

Universal Fireproof hollow metal doors are manufactured per order and designed specifically for use on commercial buildings. When we say commercial grade, we mean it. our doors are manufactured from thick 20 gauge heavy duty steel and the door frames are constructed from 16 gauge steel. This is the industry standard for any hollow metal door and frame used in any commercial building and it offers the best security. Unfortunately, there are many residential grade hollow metal doors on the market today being advertised as commercial grade. Many of these residential grade steel doors purposely do not specify the gauge of steel the door is constructed from. The harsh reality is that if the door's steel gauge is not advertised or listed, then it is most likely constructed from thin 24 or 26 gauge steel with no insulated core and designed for residential light duty homes. When residential steel doors are installed in a commercial building this results in the metal doors denting and deforming within days of installation. Not to mention, the thin gauge residential grade steel provides much less security than a commercial grade 20 gauge steel door. You will not have this issue with our hollow metal door system. Universal hollow metal doors feature heavy duty 20 gauge steel with an insulated honeycomb core, lock reinforcement, and hinge reinforcement. Our frames are designed using 16 gauge steel so they will not bend or dent easily.

Best Value For Security

Universal hollow metal doors are ideal for security doors. Unlike wood or aluminum glass doors, steel doors can provide much more security and durability. Wood doors often crack and storefront glass doors are vulnerable to broken glass. If your commercial building is in an area that is subject to abuse or break ins, the Universal commercial steel door is your best option with the best value. The heavy duty steel door construction and frame is much more durable than aluminum or wood. Steel doors also have a much higher impact resistance than commercial wood or storefront doors.

Energy Efficient

Our hollow metal steel doors come standard with an insulated honeycomb core. This core type helps retain your commercial building's energy.

About Our Product

Universal Fireproof Door manufactures standard and custom steel hollow metal doors and frames, using locally sourced materials to ensure quality and sustainability. Their standard products are available in common sizes and configurations, complying with industry fire-rating and security standards. For custom orders, they offer tailored solutions to meet specific architectural needs, including unique sizes, finishes, hardware, and fire ratings. By using locally sourced materials, Universal Fireproof Door not only supports the local economy but also ensures faster production and reduced environmental impact while maintaining high safety and performance standards.

Need Help? Dial 1+718-455-8442 Mon-Fri 8am - 4:30pm EST or Email Sales@ufiredoor.com For Any Inquiries

$1,811.61$550.00 Save70%

Available Same Day

Guaranteed SAFE Checkout

Looking to pickup? Here are our pickup locations.

1171 Myrtle Ave Brooklyn New York 11206

75 Emjay Blvd Brentwood New York 11717

Information hub

Questions & Answers

How to measure a steel door for an existing steel frame?

Tools Needed:

Measuring tape

Notepad or device for recording measurements

Step-by-Step Process:

Measure the Width of the Door:

Open the door and measure the width from the edge of the door on one side to the other.

Measure at three different points: top, middle, and bottom. If the measurements differ, use the smallest measurement.

Measure the Height of the Door:

Measure the door height from the top edge of the door to the bottom edge, not including any weatherstripping or thresholds.

Measure the Thickness of the Door:

Measure the thickness of the door by placing the measuring tape on the edge of the door. Standard steel doors are usually 1-3/4 inches thick, but some older or custom doors might be different.

Measure the Frame Opening (Optional):

If you’re replacing the door, measure the inside dimensions of the frame (called the "rough opening"). Measure the width from one side of the frame to the other and the height from the sill to the top of the frame.

Check the Hinge Placement:

Measure the hinge locations on the existing door. Measure from the top of the door to the top of each hinge to ensure the new door’s hinges will align with the existing frame.

Measure the Strike Plate & Lockset Placement:

Measure from the top of the door to the center of the lockset and strike plate to ensure proper alignment of the lock mechanism with the frame.

Important Considerations:

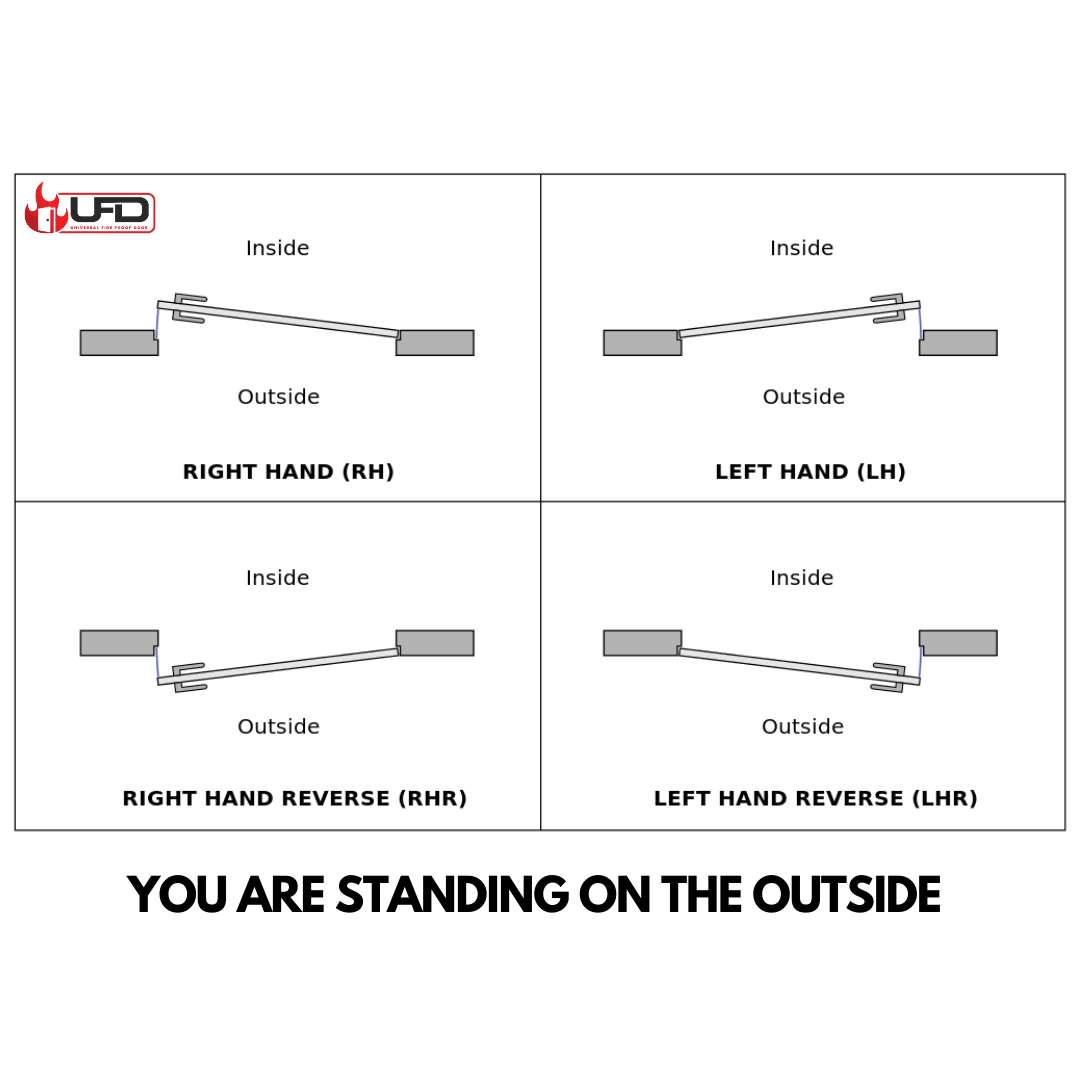

Door Swing: Determine the door swing (left-hand or right-hand) to ensure the replacement door opens in the correct direction.

Existing Frame Condition: Inspect the steel frame for any damage or warping that could affect the new door's fit. You may need to make repairs or adjustments before installing the new door.

Do we provide Installation services?

Universal fireproof door installation service offers expert installation of fire-rated doors designed to prevent the spread of fire and smoke. Their service ensures proper fitting, compliance with safety regulations, and enhanced protection for residential, commercial, and industrial properties.

How much does it cost to install a door?

Prices vary depending on door commercial, door hardware, doors for interior, doors metal. you choose as well as the geographical area where the installation will take place.

How do i know if i need to replace my door?

An entry door or patio door will have a certain amount of wear and tear due to the weather and everyday use, but you’ll want to watch for cracked paint and evidence of mold or mildew. These are signs your door needs to be replaced. A door that is older than 20 years is likely due for an upgrade. If your door tends to be drafty when colder weather hits, it could be time for a better-insulated door. You also can expect to see signs of normal wear and tear on interior doors. It’s time for a new door if you notice any structural damage, such as trouble opening and closing the door commerical , or if the door is coming off the hinges and can’t be fixed. A new door can have a big impact on your home’s style, whether you want to upgrade just one door or multiple doors throughout your home. We offer beautiful decorative iron doors, wood doors, security doors, door hardware and more. No matter your needs or style preference, we have the perfect door for you and your home.

How long does it take to install a steel door?

The length of a door installation project varies, but typically our professional installers can complete the work within a hour. If you’re having multiple door commercial replaced, the installation process could take longer.

Do you dispose of the old doors?

Yes. We can take care of removing your old door and hauling it away, often at no extra charge. Our team also will clean up any work debris so you aren’t left with a mess after installation.
